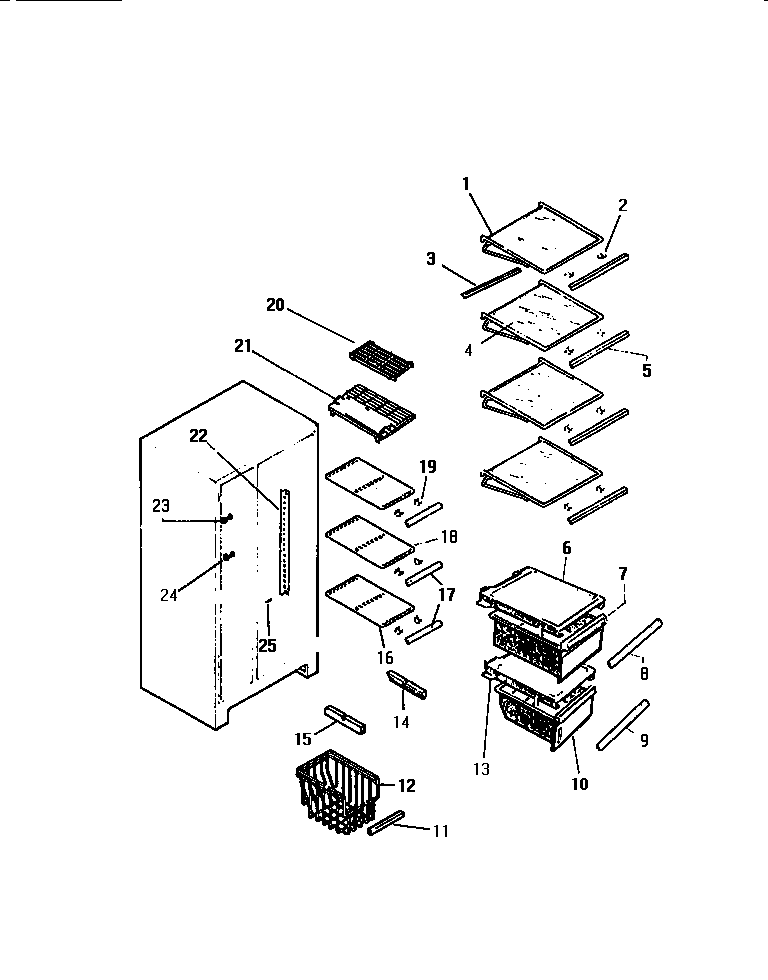

FMW240AN5F 05 – SHELVING

Products

Position	Product
*84779	SCREW-TRIM MTG (2) (NON-ILLUSTRATED)
1	WCI G171608-08
3	WCI G172436-16
4	WCI G171654-15
5	TRIM-SHELF-FRONT (4)
6	COVER-UPR PAN
7	FAN, CRISPER UPPER
8	TRIM PAN, UPPER
9	WCI G161013-52
10	WCI G171259-08
11	WCI G167779-06
12	WCI G171611
13	COVER-LWR PAN
14	HANGER-BASKET RS
15	HANGER-BASKET LS
16	SHELF-FREEZER, BOTTOM
17	TRIM-CLIP ON (3)
18A	5304509705 Frigidaire Refrigerator Grommet
18	SHELF-FRZR, CTR (2)
19	CLIP-TRIM (NON-ILLUSTRATED)
20A	LABEL-SHELF-UPPER (NON-ILLUSTRATED)
20	WCI G174556-01
21A	LABEL-SHELF-LOWER (NON-ILLUSTRATED)
21	WCI G174571-01
22	CHANNEL-RS & LS
23	SUPPORT, ICE MAKER (2)
23A	SCREW SUPPORT (2)
24A	SCREW-SUPPORT MOUNTING (4) (NON-ILLUSTRATED)
24	SUPPORT, SHELF (8)
25	5304455852 Frigidaire Refrigerator Screw
