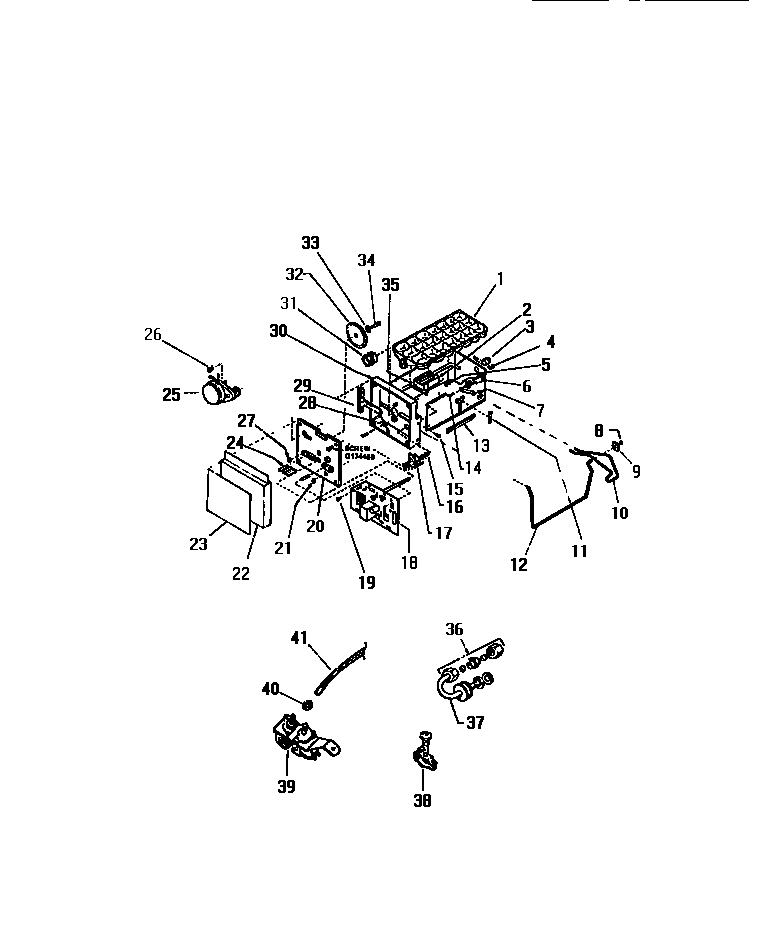

FMW240AN5F 08 – ICE MAKER

Products

Position	Product
*84806	WCI G174440
1	ICE TRAY
2	WCI G174479
3	TRAY-PIVOT (NON-ILLUSTRATED)
4	WCI G174435
5	WCI G174417
6	NUT-PUSH
7	SPRING-TRAY
8	RETAINER RING
9	BEARING-GAUGE ARM
10	WIRE-SHUT OFF
11B	5304455650 Frigidaire Refrigerator Screw
11	WCI G175041
11A	SCREW, CHANNEL MOUNTING (3)
12	SENSING ARM
13	WCI G175135
14	WCI G174442
15	WCI G169729
16	WCI G174485
17	WCI G174497
18	PC BOARD
20	PLATE, MOUNTING
21	CLIP
22	WCI G177709-04
22A	WCI G183122
23	WCI G180789-01
24	CAM FOLLOWER
24B	GUIDE, ICE MAKER TO DIVIDER
24A	WCI G170839
25	MOTOR-ICE MAKER
26	SCREW, MOTOR TO PLATE (2)
27	NUT-HEX
28	WCI G174432
29	RACK, GEAR
30	HOUSING-ICE MAKER
31	WCI G174492
32	WCI G174484
33	WASHER-CRANK SHAFT
34	WCI G174444
35	RETAINER, INSULATOR
36	WCI G158163
37	WCI G159415
38	WCI G99428
39	VALVE, WATER
40	NUT, INLET TO SOLENOID VALVE
41	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
