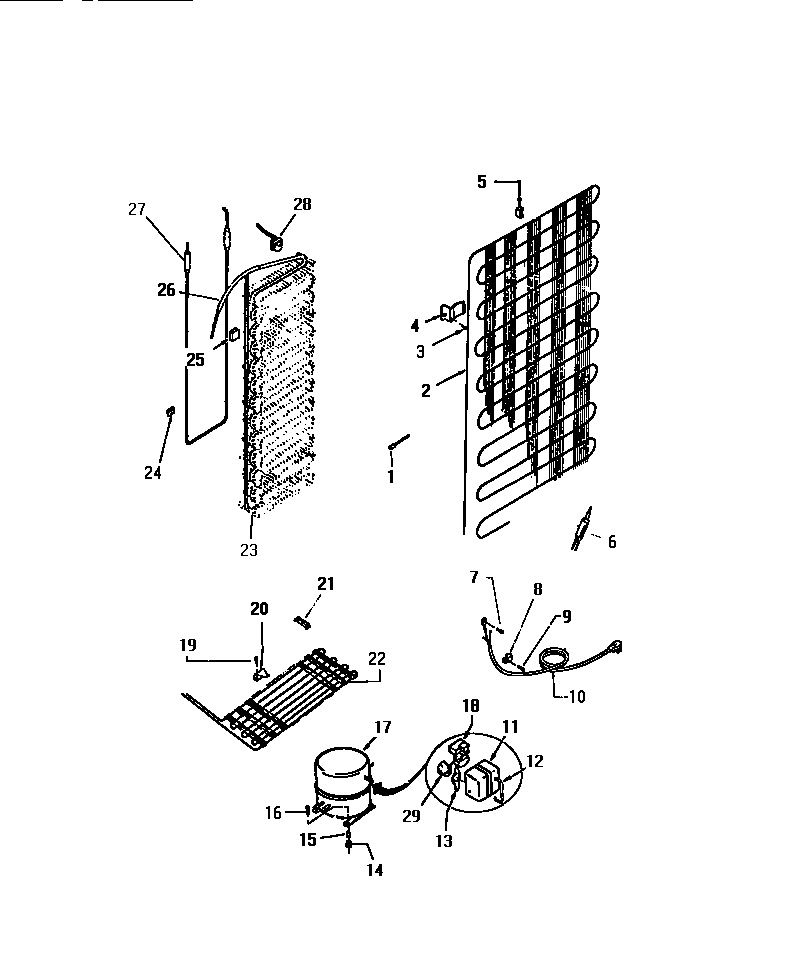

FMW240AN5F 10 – SYSTEM & AUTOMATIC DEFROST PARTS

Products

PositionProduct
*84787WCI G175909-03
*84786HOT TUBE REPAIR KIT
15308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
2WCI G169757
4BRACKET, COND. MTG (4)
5SUPT. COND. MTG.
5A5304500008 Frigidaire Oven Screw
65303305677 Frigidaire Replacement Filter Dryer Filters
85303001199 Frigidaire Refrigerator Wiring Harness Clamp
95308000039 Frigidaire Refrigerator Screw
10CORD, SERVICE
11COVER
125303006412 Frigidaire Refrigerator Cover Mounting Strap
13RETAINER
14218513300 Frigidaire Refrigerator Compressor Mount Grommet
15SLEEVE COMP MTG (3)
16SCREW – 1/4-20 (3) COMP. MTG.
17WCI G173237
18WCI G182225-05
19218843801 Frigidaire Refrigerator Screw
20BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
21WCI G171111
21A5304455651 Frigidaire Refrigerator Screw
22WCI G171126
23EVAPORATOR
24WCI G167363
25WCI G169493
26CAP AND SUCTION LINE ASSEMBLY
27WCI G175351
285303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
29WCI G152989
