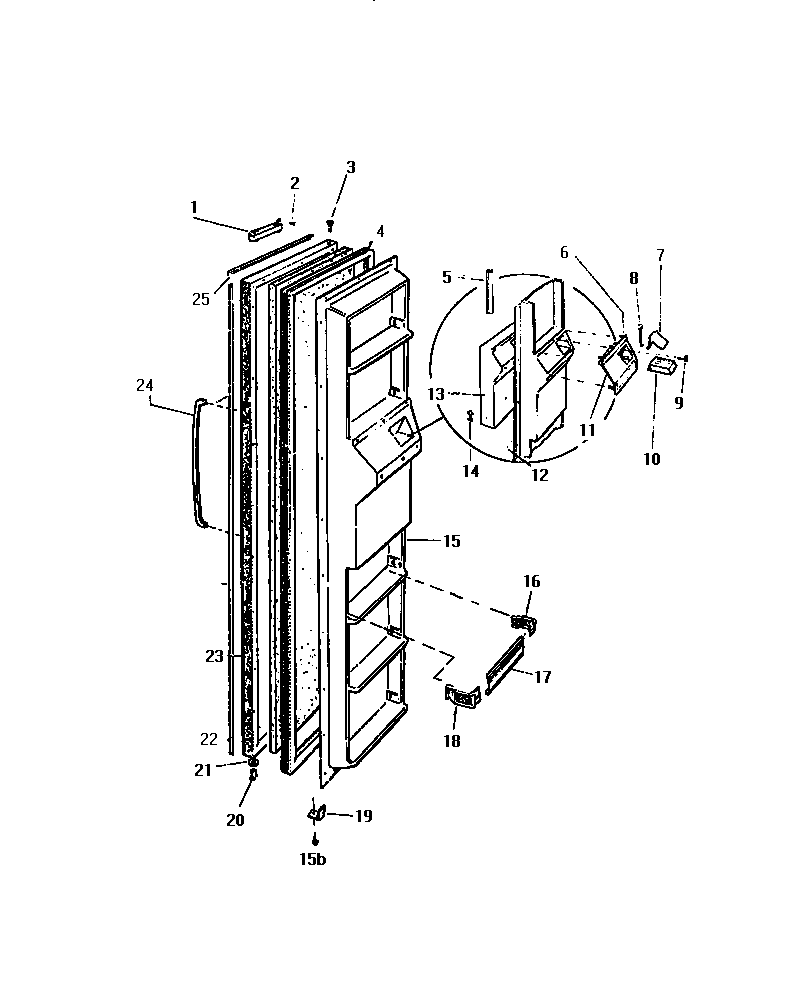

FMW240AN5T 02 – FREEZER DOOR

Products

Position	Product
*84790	BUTTON PLUG DOOR STOP HOLES, WHEAT
*84764	WCI G175337
*84762	WCI G175335
*84760	BUTTON, PLUG, DOOR TRIM (4)
*84763	INSULATION LOWER
*84761	INSULATION, UPPER
1	DOOR CLOSER
2	WCI G169729
3	WCI G183139
4	WCI G180551-03
5	WCI G177720
6	WCI G179017
7B	WCI G177742
7A	WCI G175040-04
8	SPRING-FLIPPER
9	5304455650 Frigidaire Refrigerator Screw
10	WCI G180637
11A	WCI G181241-01
12	WIRING HARNESS-FRZR DOOR
13	INSULATION
14A	RETAINER
14B	NUT, SPEED (2)
14C	NUT, INLET TO SOLENOID VALVE
15B	5304455651 Frigidaire Refrigerator Screw
15A	WCI G183225-01
16	WCI G170022-01
17	WCI G162939-25
18	WCI G170023-01
19	BUMPER-LIGHT SW.
20	BUSHING-LWR HINGE
21	BEARING, HINGE (3)
22	WCI G185566
23C	WCI G180770-09
24B	SCREW-HANDLE (4)
24A	HANDLE, DOOR PC & FC (2)
25A	WCI G184297-04
25B	WCI G161002-18
25C	WCI G172680-16
