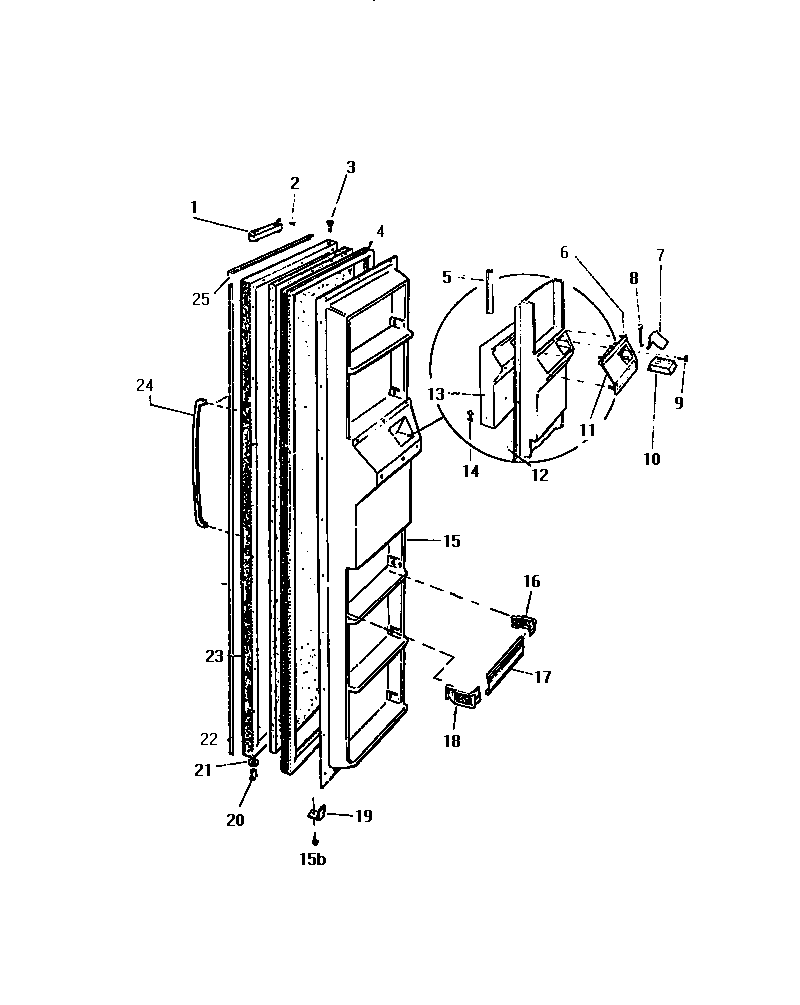

FMW240AN5V 02 – FREEZER DOOR

FMW240AN5V 02 – FREEZER DOOR

Written by

in

FMW240AN5V 02 – FREEZER DOOR

Products

PositionProduct
*84762WCI G175335
*84791BUTTON PLUG DOOR STOP HOLES, AVOCADO
*84764WCI G175337
*84760BUTTON, PLUG, DOOR TRIM (4)
*84763INSULATION LOWER
*84761INSULATION, UPPER
1DOOR CLOSER
2WCI G169729
3WCI G183139
4WCI G180551-03
5WCI G177720
6WCI G179017
7BWCI G177742
7AWCI G175040-04
8SPRING-FLIPPER
95304455650 Frigidaire Refrigerator Screw
10WCI G180637
11AWCI G181241-01
12WIRING HARNESS-FRZR DOOR
13INSULATION
14ARETAINER
14BNUT, SPEED (2)
14CNUT, INLET TO SOLENOID VALVE
15B5304455651 Frigidaire Refrigerator Screw
15AWCI G183225-01
16WCI G170022-01
17WCI G162939-25
18WCI G170023-01
19BUMPER-LIGHT SW.
20BUSHING-LWR HINGE
21BEARING, HINGE (3)
22WCI G185566
23BWCI G180770-08
24BSCREW-HANDLE (4)
24AHANDLE, DOOR PC & FC (2)
25AWCI G184297-04
25BWCI G161002-18
25CWCI G172680-16
