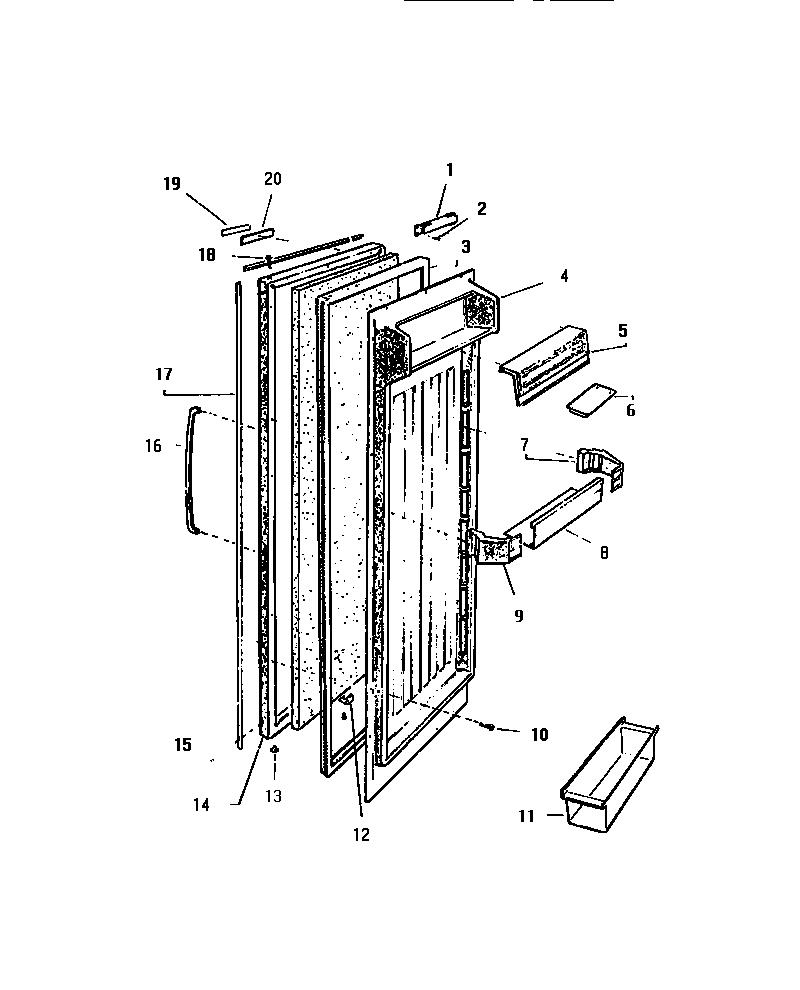

FMW240AN5V 03 – REFRIGERATOR DOOR

Products

Position	Product
*84770	INSULATION, EXT. DOOR PNL
*84769	BUTTON, PLUG, DOOR TRIM (4)
*84766	BUTTON PLUG DOOR STOP HOLES, AVOCADO
1	DOOR CLOSER
2	WCI G169729
3	WCI G180551-02
4	WCI G171618-01
5	WCI G167783-05
6	5308000716 Frigidaire Refrigerator Dish
7	WCI G163065-01
8	WCI G163031-10
9B	WCI G101890
9A	WCI G167115
9	WCI G163064-01
11	WCI G173948-11
12A	5304455651 Frigidaire Refrigerator Screw
12	BUMPER-LIGHT SW.
13	BEARING, HINGE (3)
14	PANEL EXT. DOOR, PC (TEXTURED), AVOCADO
15	WCI G185566
16	HANDLE, DOOR PC & FC (2)
16A	SCREW-HANDLE (4)
17	WCI G184297-03
17A	WCI G161001-17
17B	WCI G172680-15
18	WCI G183139
19	WCI G178282-01
20A	WCI G162991-04
20	NAMEPLATE FRAME
