FMW240AN5W 04 – CABINET

FMW240AN5W 04 – CABINET

Written by

in

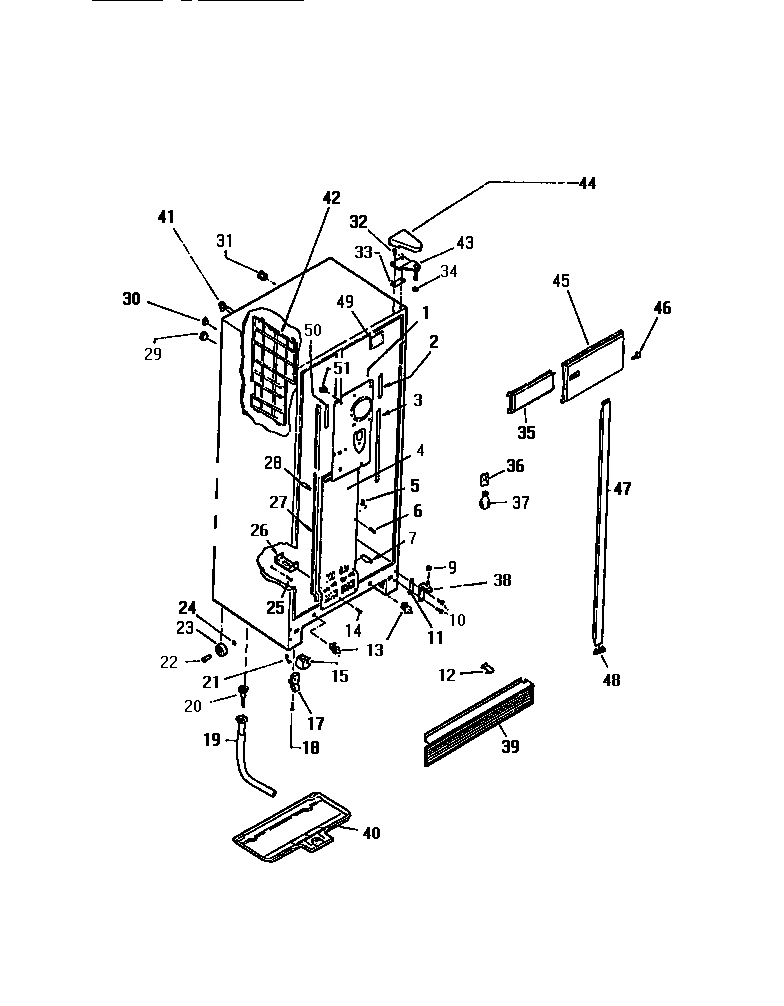

FMW240AN5W 04 – CABINET

Products

PositionProduct
*84776WCI G185653
*84795WCI G168541
*84773WCI G166800
*84772WCI G166801
*84798TAPPING PLATE (2)
*84774FERRULE, OUTER
*84778BUTTON, PLUG, LINER (2)
*84771WCI G164571
*84775FERRULE, INNER
*84777WCI G180728
*84803240494001 Frigidaire Refrigerator Plug Button
*847975303001147 Frigidaire Refrigerator Plug-Harness Hole
*84799WCI G183100-44
*84796WCI G185586
*84794WIRING HARNESS-ICE MAKER-UPPER
1COIL COVER-UPPER
2WCI G165233
3GASKET-COVER LS
4COIL COVER-LOWER
5WCI G162703
6216858001 Frigidaire Refrigerator Screw
7WCI G164912-03
7A5304455650 Frigidaire Refrigerator Screw
9WASHER, NYLON
10SCREW – 1/4 X 1 (2)
11SHIM, HINGE
12CLIP, GRILLE
135303289051 Frigidaire Refrigerator Light Switch
15WCI G177743
15ANUT, INLET TO SOLENOID VALVE
17ROLLER ASSEMBLY – FRONT (2)
18BOLT, HOUSING TO FRONT RAIL (2)
19241957901 Frigidaire Refrigerator Tube-Drain
20WCI G171193
21COVER-BOTTOM HINGE
22WCI G162809
23ROLLER (2)
24NUT, DAMPER MOUNTING
25WCI G184851
26WCI G158022
27GASKET R & L COVER (2)
28WCI G169471
29WCI G174733
30WCI G174734
31TUBE, INSULATION (2)
32241710601 Frigidaire Refrigerator Screw
35WCI G182527-03
36218906802 Frigidaire Light Lamp Socket
37316538904 Frigidaire Oven Lamp Light
38BWCI G141673
38AHINGE-BOTTOM LS (NON-ILLUSTRATED)
38DNUT, SPEED (2)
38CWCI G142361
38BRACKET-LOWER HINGE
39GRILLE
40WCI G171125
41BWCI G175439
41A5303001193 Frigidaire Refrigerator Clamp
41215456100 Frigidaire Refrigerator Water Inlet Tube
42ASUPPORT
42DIVIDER I.M.
43AWCI G183716
43HINGE-TOP RS
43CWCI G183861
43EWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
44COVER HINGE, WHITE
45WCI G169601-12
46WCI G165177
47WCI G164643-01
48MULLION TRIM-WHITE
49PAD, FOAM (2)
50GASKET-COVER RS
51WCI G163669
