FMW240AN5W 06 – CONTROLS & FAN

FMW240AN5W 06 – CONTROLS & FAN

Written by

in

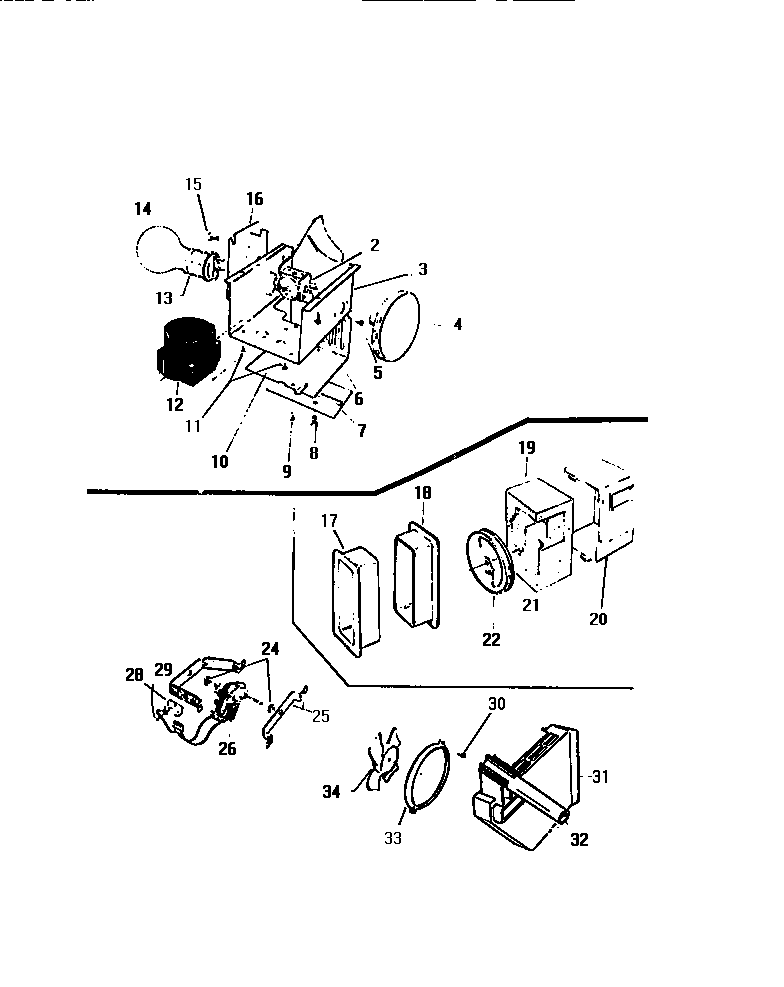

FMW240AN5W 06 – CONTROLS & FAN

Products

PositionProduct
*84805WCI G162703
*84780TUBE
2CONTROL
3WCI G164788
4WCI G164906-01
5WCI G107080
65304455852 Frigidaire Refrigerator Screw
7WCI G166068
10COVER CONT. BRACKET
115304455649 Frigidaire Refrigerator Screw
12215846604 Frigidaire Refrigerator Defrost Timer
13WCI G157160
14316538904 Frigidaire Oven Lamp Light
15WCI G165545
16WCI G165543
17WCI G166802
18WCI G166803
19WCI G164575
20A5304455650 Frigidaire Refrigerator Screw
20WCI G164523
21WCI G185373
22KNOB, DAMPER CONT.
24G187559 Frigidaire Refrigerator Bushing
25BRACKET, FRONT MOTOR MOUNTING
265300158289 Frigidaire Evaporator Fan Motor
275304455651 Frigidaire Refrigerator Screw
28WCI G164571
29BRACKET, REAR MOTOR MOUNTING
30131420300 Frigidaire Screw
31WCI G187033-01
31AFOAM TAPE-COVER
32TUBE-FILLER EXTENSION
33ANUT, ORIFICE (2)
33RING, FAN ORIFICE
33BWCI G170839
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
