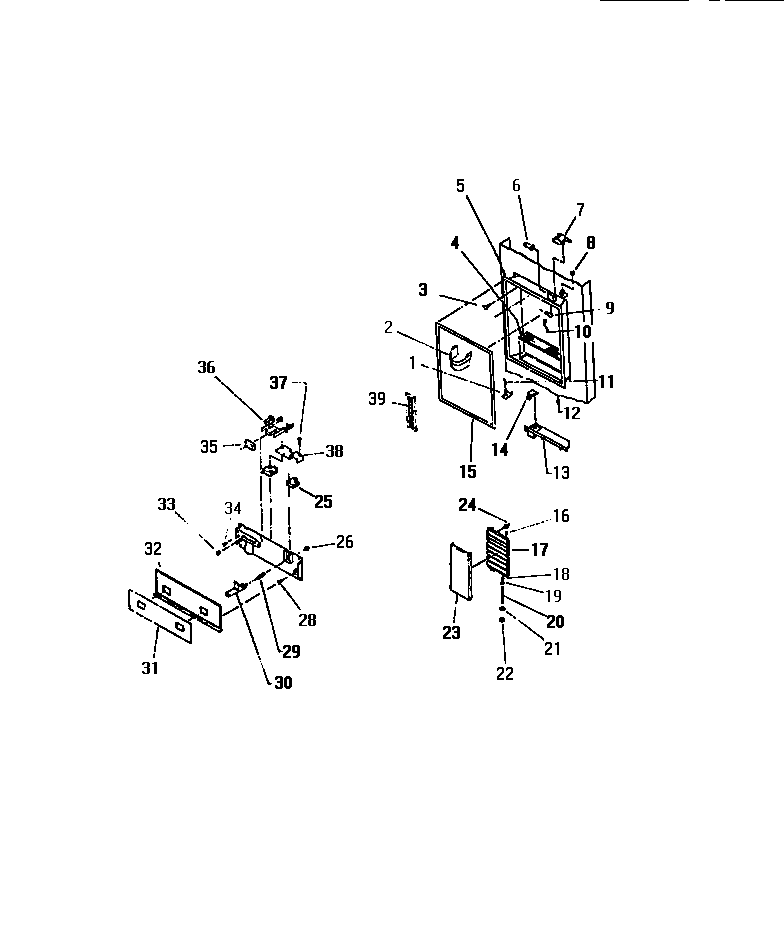

FMW240AN5W 07 – ICE DOOR & WATER TANK

FMW240AN5W 07 – ICE DOOR & WATER TANK

Written by

in

FMW240AN5W 07 – ICE DOOR & WATER TANK

Products

PositionProduct
*84782WCI G186553
*84784HEATER, ICE AND WATER HOUSING
*84783WCI G185227
1WCI G175040-04
2WCI G180004-01
4WCI G174392-01
5WCI G174421-06
6WCI G177729
7WCI G174390
8WCI G175246
9WCI 5304506475
10WCI G179999
11SPRING-FLIPPER
13WCI G174402-03
13ANUT, SPEED (2)
14WCI G180780
15WCI G180774
16WCI G163977
17WCI G163937
18WCI G186057
19WCI G186058
20TUBE-CUT TO SIZE (2)
21NUT, TUBE MOUNTING (2)
22WCI G163929
23WCI G163925-02
24WCI G163938
25WCI G185542
26WCI G174411
29SPRING-WTR ACTUATOR
30WCI G185063-01
31WCI G185659-01
32WCI G179802-01
33WCI G177724
34WCI G174414
35WCI G187106-01
36WCI G177725
37WCI G177686
38WCI G174400
39LABEL, FILL PAD
