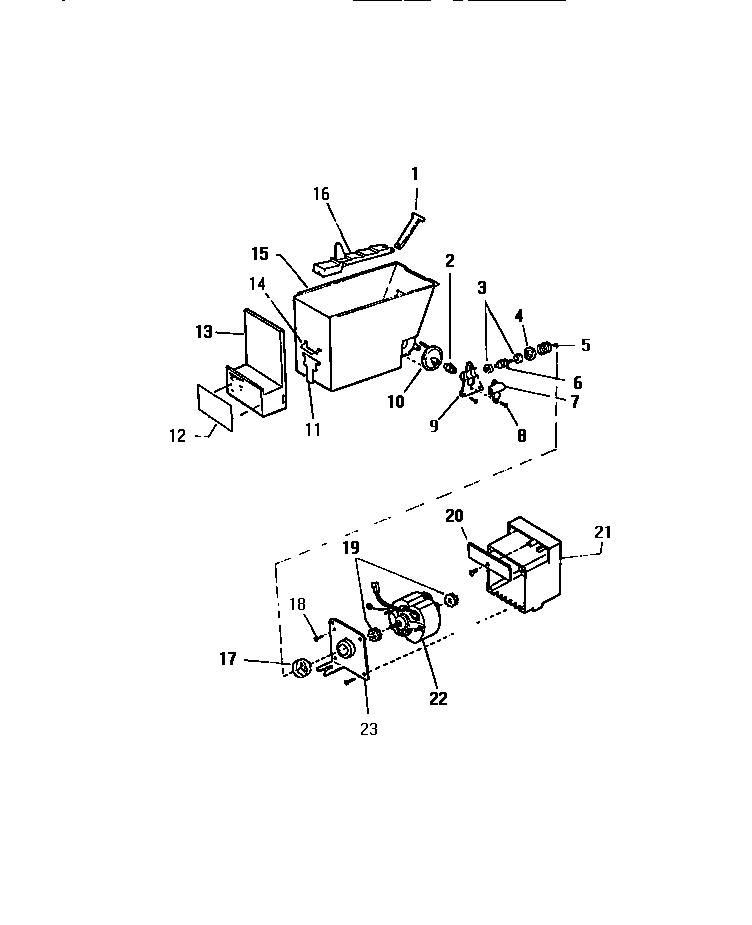

FMW240AN5W 09 – ICE BUCKET & MOTOR

Products

Position	Product
1	WCI G180004-01
1A	WCI G177697-01
2	WCI G174702
3	WCI G177695
4	COUPLING, ICE DISPENSER CONTAINER
5	SPRING-ILE DISP DRIVE
6	WCI G174406
7	COVER-HOUSING ICE RAM
9	HOUSING, ICE RAM DRIVE
10	DISC, ICE RAM DRIVE
11	WCI G177407-01
12	LABEL, ICE CONTAINER
13	WCI G177416-04
14	SPRING-ICE DOOR
15	WCI G177213-01
16	WCI G177413-01
17	COUPLING-ICE DISP MOTOR
18	216858001 Frigidaire Refrigerator Screw
19	GROMMET-ICE DISP MOTOR (2)
20	COVER-ICE DISP MOTOR
21	HOUSING-ICE DISP MOTOR
22A	5304455852 Frigidaire Refrigerator Screw
22B	5304455650 Frigidaire Refrigerator Screw
22	MOTOR, ICE DISPENSER RAM
23	BRACKET-ICE DISP MTR
