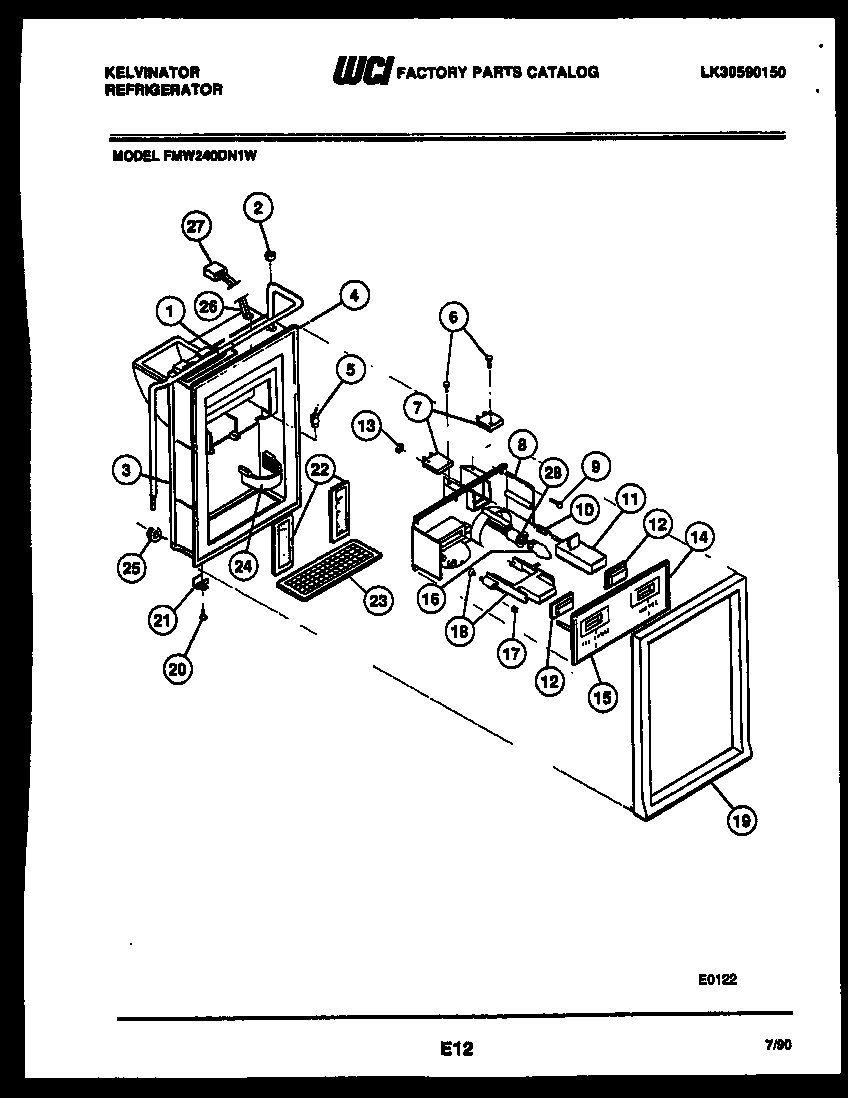

FMW240DN1T 07 – ICE DOOR, DISPENSER AND WATER TANK

Products

PositionProduct
*14012WCI 5303001074
*14012WCI 5318653301
1TUBE-WATER INLET & PILOT ASSY
2WCI 5303001066
3WCI 5308015588
4WCI G188308-03
5WCI 5308010326
6SCREW (4)
7WCI 5303001078
8PLATE-SWITCH MTG
9SCREW (4)
10SPRING-WATER ACTUATOR
11WCI 5303001077
12BUTTON-ICE
13WCI 5302832214
14WCI G182654-02
15FRONT PANEL
16WCI 5304506475
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
19WCI 5318251802
20WCI 5308010330
21WCI 5300179966
22PAD-FILL (2)
23WCI 5303001091
24WCI 5303205864
25NUT, SELF-THREADING, 1/8
26WCI 5303001082
27PLUG-HARNESS BOTTOM
28SOCKET-LIGHT BULB
