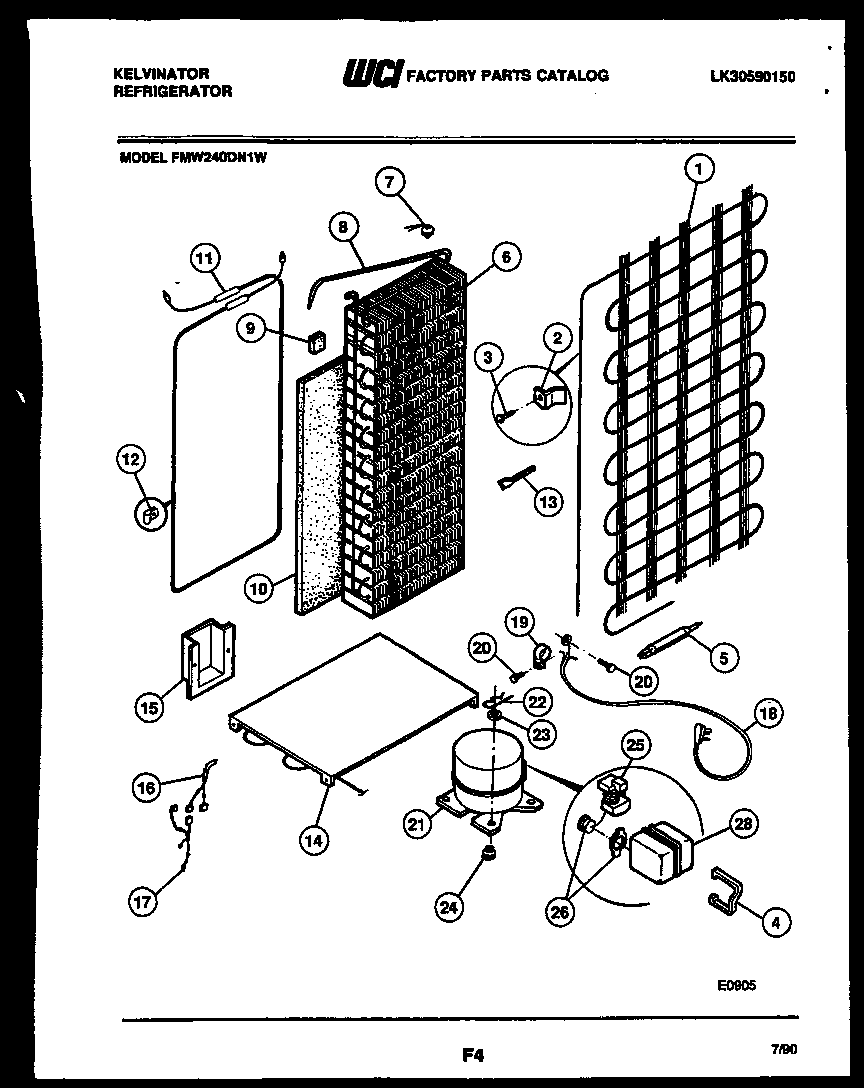

FMW240DN1T 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

FMW240DN1T 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FMW240DN1T 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*14026WCI 5300189379
1WCI 5308017119
2BRACKET, MOUNTIN, CONDENSER, (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
5B218843801 Frigidaire Refrigerator Screw
55303305677 Frigidaire Replacement Filter Dryer Filters
6AWCI 5308009619
6WCI 5303916605
6BTUBE-INLET (NOT ILLUSTRATED)
7WCI 5308000805
8A5308000133 Frigidaire Refrigerator Clamp
8WCI 5308017565
9WCI 5308000828
10WCI 5303001235
11WCI 5303916026
12WCI 5308002777
135308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
14AWCI 5308002782
14CWCI 5308002780
14WCI 5308017118
14B5308000039 Frigidaire Refrigerator Screw
15WCI 5303001197
16WCI 5300168541
17WCI 5308009616
18CORD-ELECTRIC POWER
195303001199 Frigidaire Refrigerator Wiring Harness Clamp
205304455651 Frigidaire Refrigerator Screw
21WCI 5308950191
22CLIP – COMPRESSOR MTG
23WASHER-COMPR MTG
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 5308000730
26ACLIP-OVERLOAD
26WCI 5308017114
