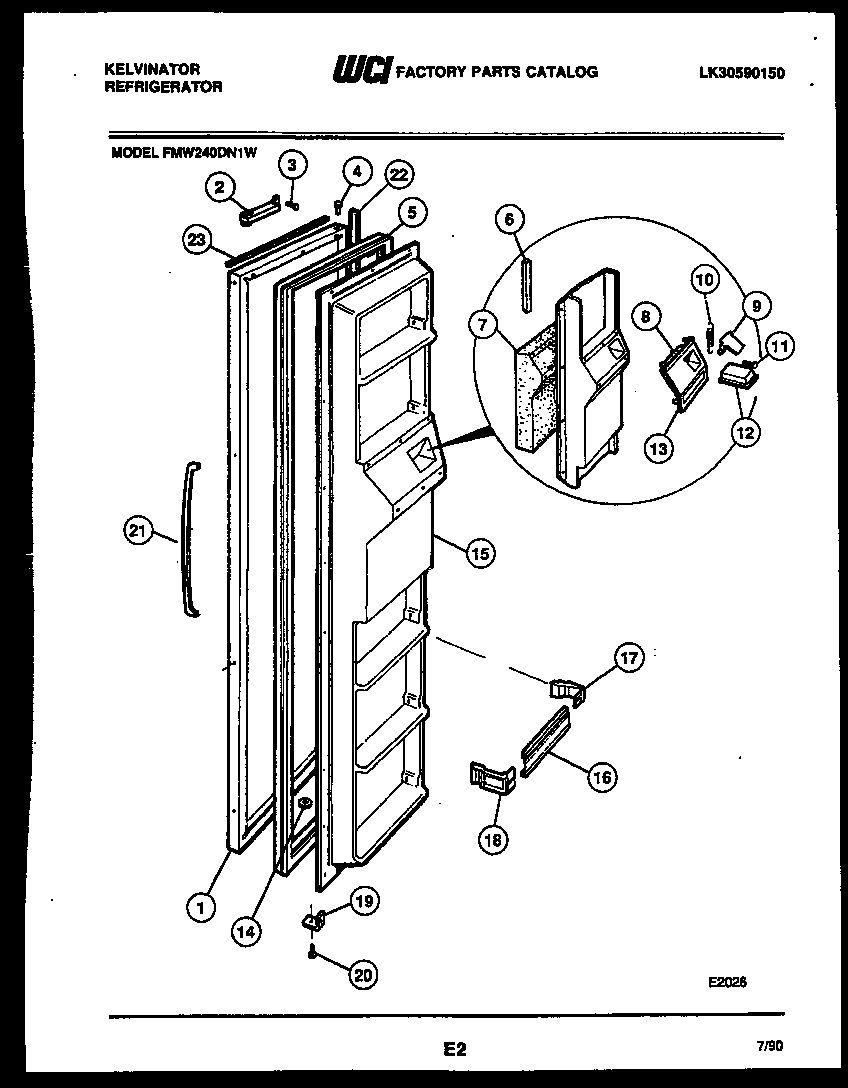

FMW240DN1V 02 – FREEZER DOOR PARTS

Products

Position	Product
*13989	WCI 08004263
*13990	WCI 5308011745
*13989	INSULATION-BULK (NON-ILLUSTRATED)
*13990	WCI 5300161116
1	WCI 5303916807
1A	WCI 5315230801
2	WCI 5303200272
3	WCI 3001020
4	WCI 5303001022
5	GASKET-FREEZER DOOR
6	WCI 5303001046
7	WCI 5308017045
8	WCI 5303001048
9	WCI 5317504004
10	SPRING-FLIPPER
11	5304455650 Frigidaire Refrigerator Screw
12	ICE DOOR
13A	NUT, SELF-THREADING, 1/8
13	WCI 5317440203
14	WCI 5303001063
15	WCI 5318077501
16	WCI G162939-34
17	WCI G170022-01
18	WCI 5317002301
19	WCI 5308000790
20	218843801 Frigidaire Refrigerator Screw
21	WCI 5318302302
21A	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22	WCI 5316100218
22A	WCI 5317268016
23	WCI 5318429704
