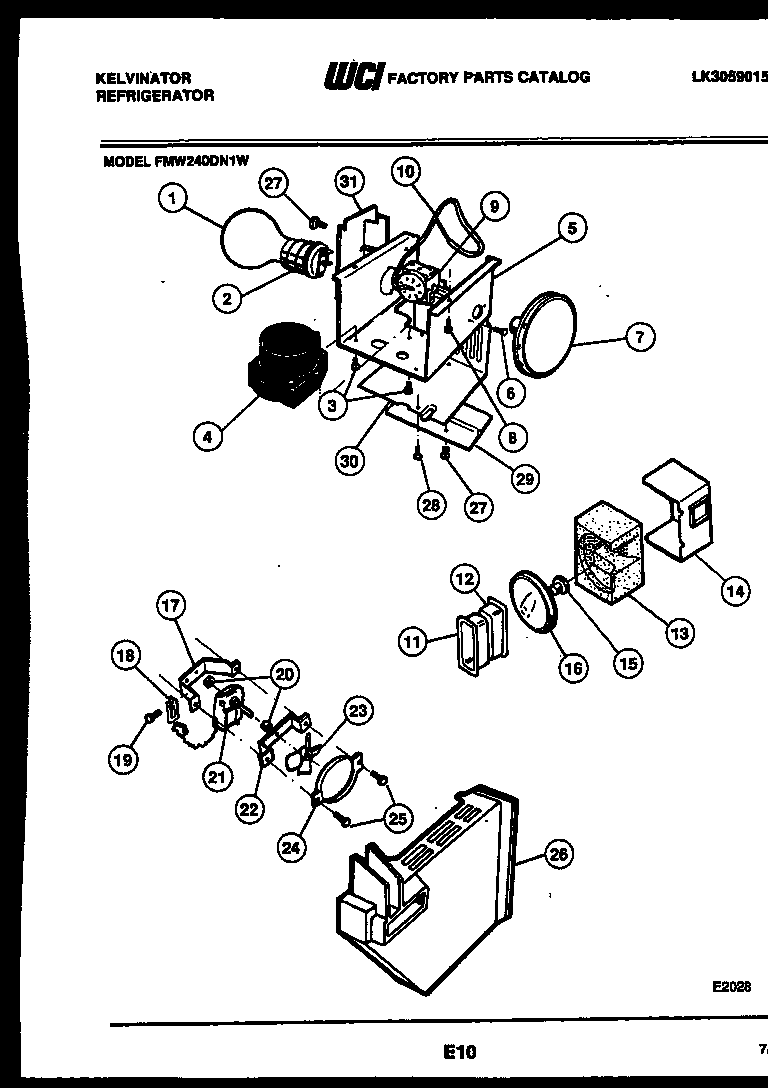

FMW240DN1V 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
*14008	CLIP-WIRING HARNESS
*14007	WCI 5308000808
*14007	WCI 5308000809
1	WCI 5303001779
2	SOCKET-LIGHT/LAMP
3	5304455649 Frigidaire Refrigerator Screw
4	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
5A	WCI 3001269
5	WCI 5308002727
6	WCI 5303001260
7	WCI 5308010380
8	5304455852 Frigidaire Refrigerator Screw
9	WCI 5308000068
10	TUBE
11	WCI 5303001276
12	WCI 5303001277
12A	WCI 5303001280
13	WCI 5308000771
14	WCI 5303001252
15	WCI 5308013429
16	WCI 5316521701
17	WCI 5303001227
18	WCI 5308000107
20	G187559 Frigidaire Refrigerator Bushing
21	5300158289 Frigidaire Evaporator Fan Motor
22	WCI 5303001226
23	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
24	RING-FAN ORIFICE
26	WCI 5308015764
26A	5304455650 Frigidaire Refrigerator Screw
27	WCI 5300165545
28	218843801 Frigidaire Refrigerator Screw
29	WCI 5308002733
30	WCI 5308002731
31	WCI 5308002730
