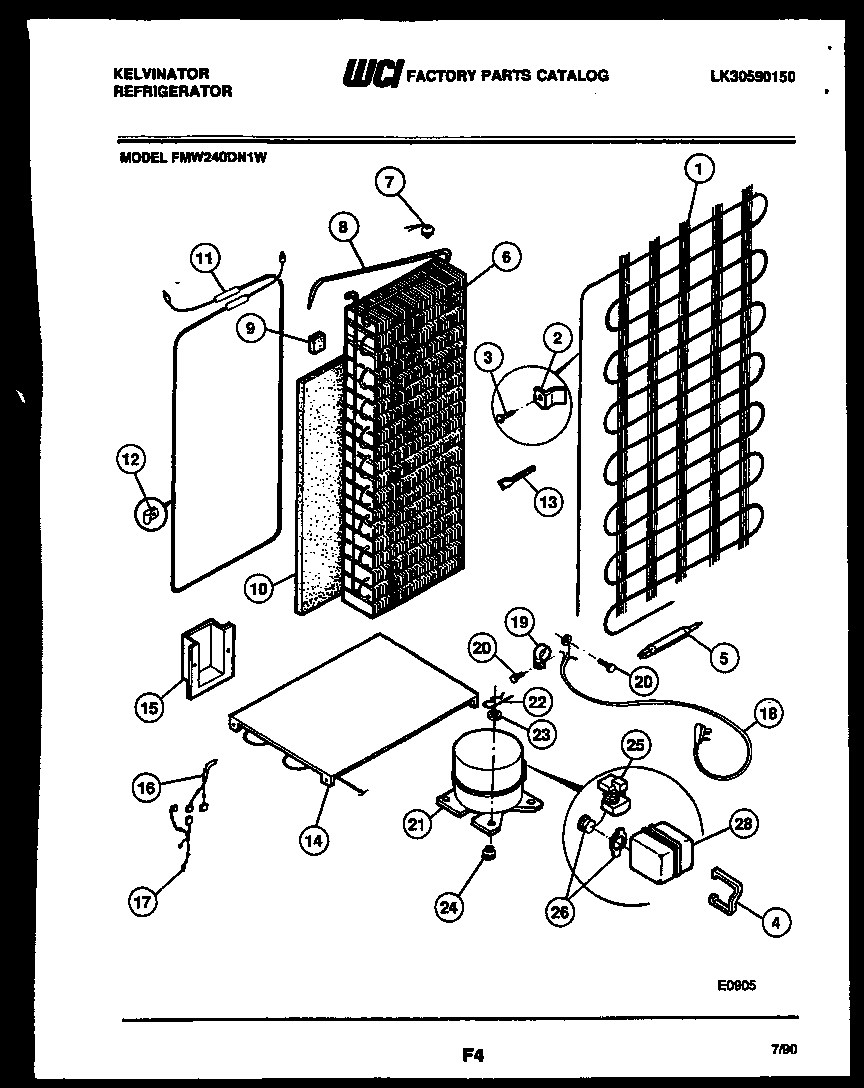

FMW240DN1V 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*14026	WCI 5300189379
1	WCI 5308017119
2	BRACKET, MOUNTIN, CONDENSER, (4)
3A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
5B	218843801 Frigidaire Refrigerator Screw
5	5303305677 Frigidaire Replacement Filter Dryer Filters
6A	WCI 5308009619
6	WCI 5303916605
6B	TUBE-INLET (NOT ILLUSTRATED)
7	WCI 5308000805
8A	5308000133 Frigidaire Refrigerator Clamp
8	WCI 5308017565
9	WCI 5308000828
10	WCI 5303001235
11	WCI 5303916026
12	WCI 5308002777
13	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
14A	WCI 5308002782
14C	WCI 5308002780
14	WCI 5308017118
14B	5308000039 Frigidaire Refrigerator Screw
15	WCI 5303001197
16	WCI 5300168541
17	WCI 5308009616
18	CORD-ELECTRIC POWER
19	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
20	5304455651 Frigidaire Refrigerator Screw
21	WCI 5308950191
22	CLIP - COMPRESSOR MTG
23	WASHER-COMPR MTG
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 5308000730
26A	CLIP-OVERLOAD
26	WCI 5308017114
