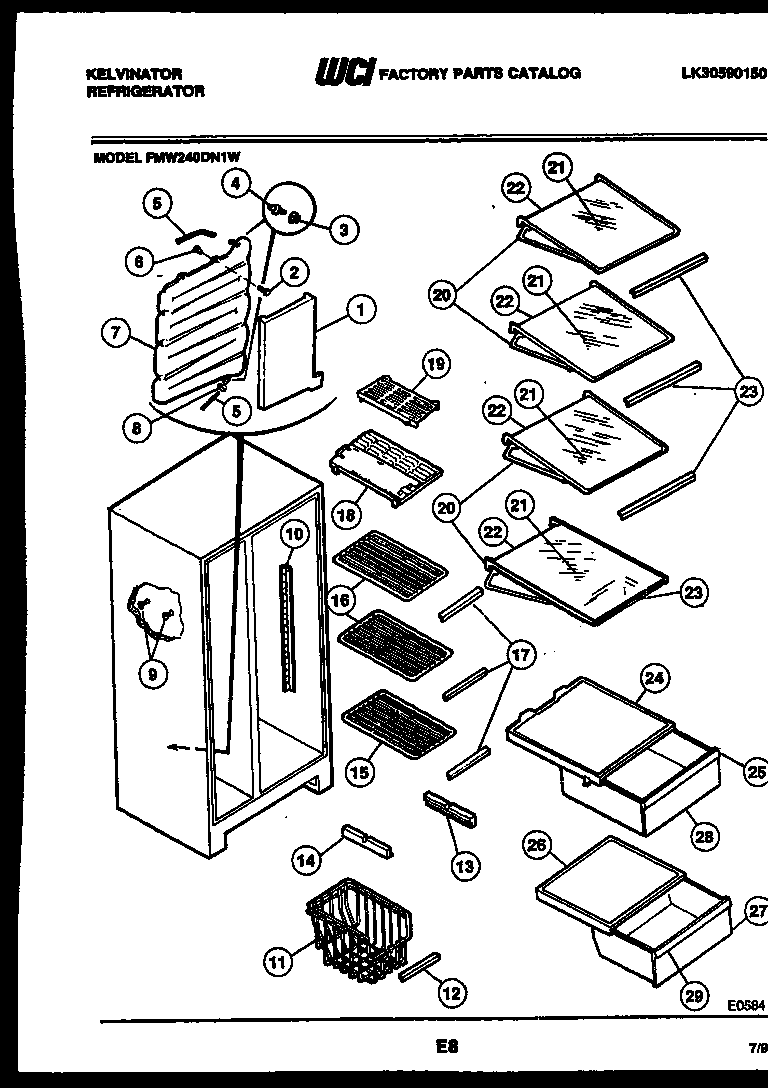

FMW240DN1W 05 – SHELVES AND SUPPORTS

FMW240DN1W 05 – SHELVES AND SUPPORTS

Written by

in

FMW240DN1W 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*140045304509705 Frigidaire Refrigerator Grommet
1A5304455650 Frigidaire Refrigerator Screw
1WCI 5308010332
2131420300 Frigidaire Screw
3WCI 5308015613
4CONNECTOR – TUBE
55308010366 Frigidaire Refrigerator P1-Water Inlet Tube
6SUPPORT-TANK (3)
7WATER TANK
8CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
9WCI 5303001291
9ASCREW (2)
10A5304455852 Frigidaire Refrigerator Screw
10CHANNEL-SHELF MTG (2)
11WCI 5308001015
12WCI 5316777905
12ASCREW-TRIM MTG. (2) (NON-ILLUSTRATED)
13WCI 5303001098
14WCI 5303001099
15WCI 5303001293
16WCI 5303001102
17AWCI 5303001101
17WCI 5316107435
18CSCREW (2)
18ALABEL – SHELF (NON-ILLUSTRATED)
18SHELF-FREEZER
18BSUPPORT-SHELF (2)
19SHELF-FREEZER (UPPER)
19ALABEL-SHELF (NON-ILLUSTRATED)
20WCI 5303001173
21WCI 5317165415
22WCI 5317243616
23WCI 5303001175
24WCI 5316971102
25WCI 5316101351
26WCI 5316972401
27WCI 5317125908
28WCI 5317125806
29WCI 5316101352
