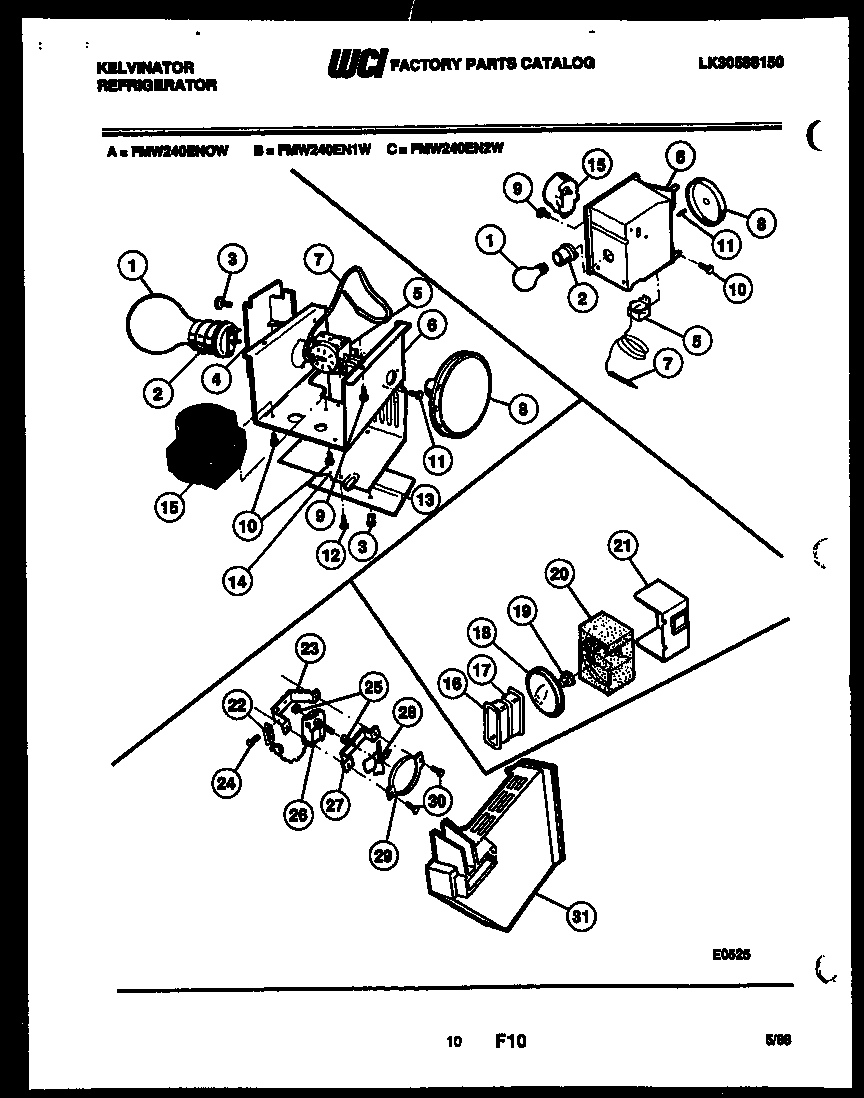

FMW240EN1J 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

FMW240EN1J 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

FMW240EN1J 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
*41966FOAM TAPE-COVER
*41966WCI G162703
*41966WCI 3015098
1316538904 Frigidaire Oven Lamp Light
2SOCKET LIGHT
5WCI G162205-05
6BWCI G165434
6AWCI G189359
7TUBE
8WCI G164906-01
95304455852 Frigidaire Refrigerator Screw
105304455649 Frigidaire Refrigerator Screw
11WCI G107080
15215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16WCI G166802
17WCI G166803
17AWCI G167582
18KNOB, DAMPER CONT.
19WCI G185373
20WCI G164575
21WCI G164523
22WCI G164571
23WCI G185303
245304455651 Frigidaire Refrigerator Screw
25G187559 Frigidaire Refrigerator Bushing
265300158289 Frigidaire Evaporator Fan Motor
27WCI G185302
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29RING, FAN ORIFICE
305304455650 Frigidaire Refrigerator Screw
31WCI G187033-01
