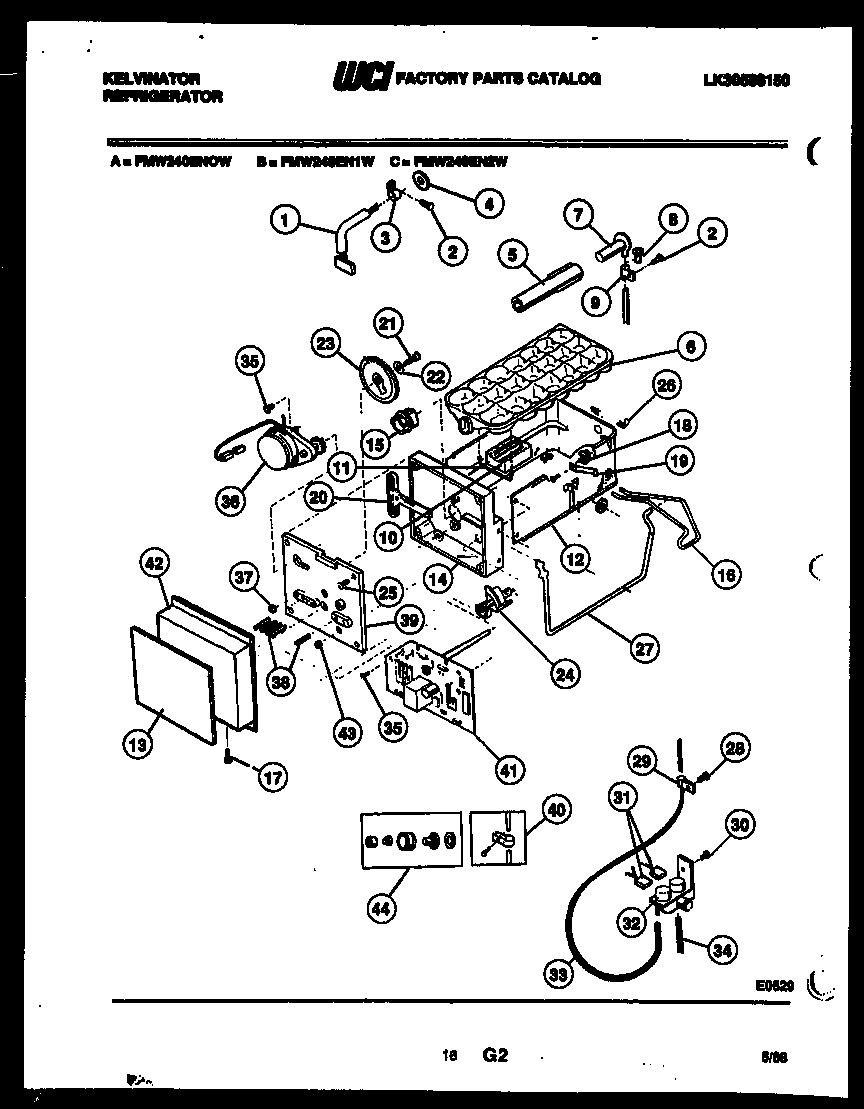

FMW240EN2D 09 – ICE MAKER PARTS

Products

Position	Product
*41980	WCI G99428
*41980	TRAY-PIVOT (NON-ILLUSTRATED)
*41980	BEARING-GAUGE ARM
1	WIRING HARNESS-ICE MAKER-UPPER
2	5304455650 Frigidaire Refrigerator Screw
4	5303001147 Frigidaire Refrigerator Plug-Harness Hole
5	TUBE-FILLER EXTENSION
6	ICE TRAY
7	215456100 Frigidaire Refrigerator Water Inlet Tube
8	WCI G154156
9	5303001193 Frigidaire Refrigerator Clamp
10	WCI G174479
11	RETAINER, INSULATOR
12	WCI G174440
13	WCI 3017911
14	HOUSING-ICE MAKER
15	WCI G174492
16	WIRE-SHUT OFF
17	WCI G169729
18	NUT-PUSH
19	SPRING-TRAY
20	RACK, GEAR
21	WCI G174444
22	WASHER-CRANK SHAFT
23	WCI G174484
24	WCI G174497
26	WCI G174485
27	SENSING ARM
28	5304455651 Frigidaire Refrigerator Screw
29	240396801 Frigidaire Refrigerator Tube Clamp
30	5308000039 Frigidaire Refrigerator Screw
31	WCI G188236
32	WCI G189174
34	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
35	SCREW (4)
36	MOTOR-ICE MAKER
37	NUT-HEX
38	CAM FOLLOWER
39	PLATE, MOUNTING
40	5304455846 Frigidaire Refrigerator Clamp
41	PC BOARD
42	WCI 3015830
43	RETAINER RING
44	WCI G159415
