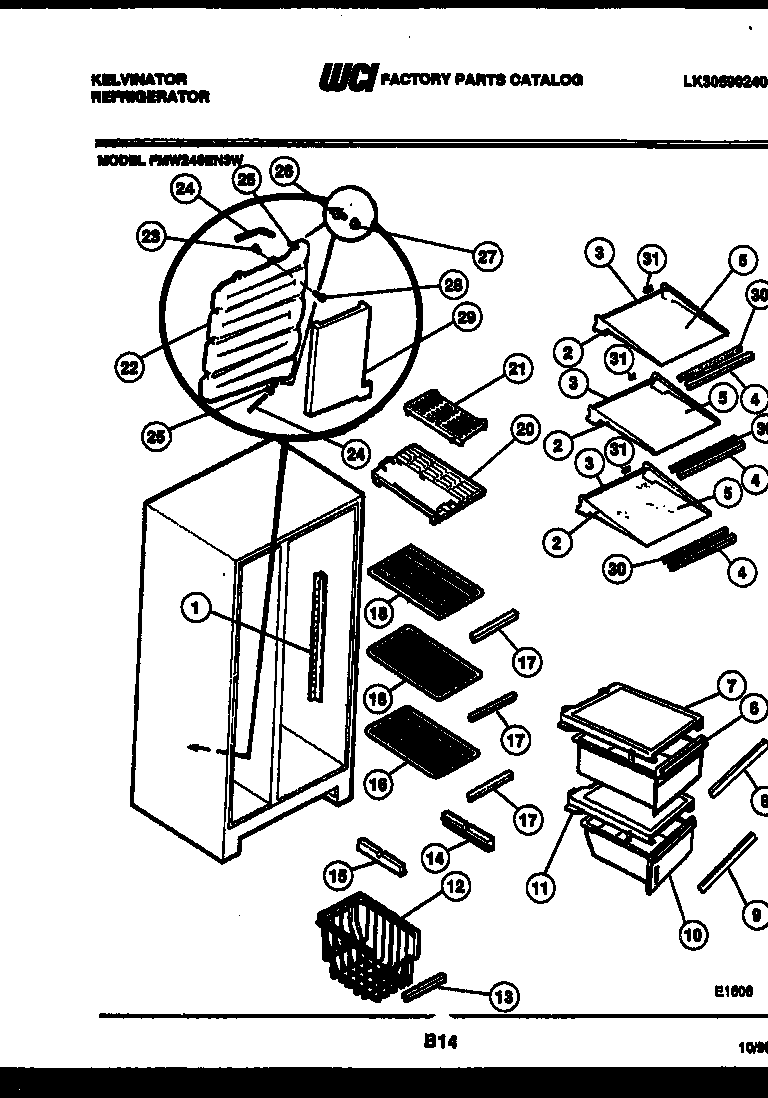

FMW240EN3F 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1CHANNEL-RS & LS
1A5304455852 Frigidaire Refrigerator Screw
2FRAME-SHELF (3)
3TRIM-SHELF REAR (4)
4TRIM-SHELF FRONT (4)
5WCI 5303211389
6PAN-STORAGE UPPER
7COVER-PAN UPPER
7AGASKET-COVER UPR (2) (NON-ILLUSTRATED)
9TRIM-PAN LOWER
10PAN-STORAGE LOWER
11COVER-PAN-LOWER
12WCI G171687
12ASCREW-TRIM MTG (2) (NON-ILLUSTRATED)
13WCI 3017909
14HANGER-BASKET RS
15HANGER-BASKET LS
16SHELF-FREEZER-BOTTOM
17TRIM (3)
18A5304509705 Frigidaire Refrigerator Grommet
18SHELF-FREEZER-CENTER (2)
20WCI G174571-01
20ALABEL-SHELF-LOWER (NON-ILLUSTRATED)
21ALABEL-SHELF-UPPER (NON-ILLUSTRATED)
21WCI G174556-01
22TANK-WATER
23WCI G163938
245308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25WCI G166705
26WCI G186058
27WCI G186057
28131420300 Frigidaire Screw
29WCI G163295-02
30RETAINER-GLASS (3) (NON-ILLUSTRATED)
31LOCK-SHELF TRIM, REAR
