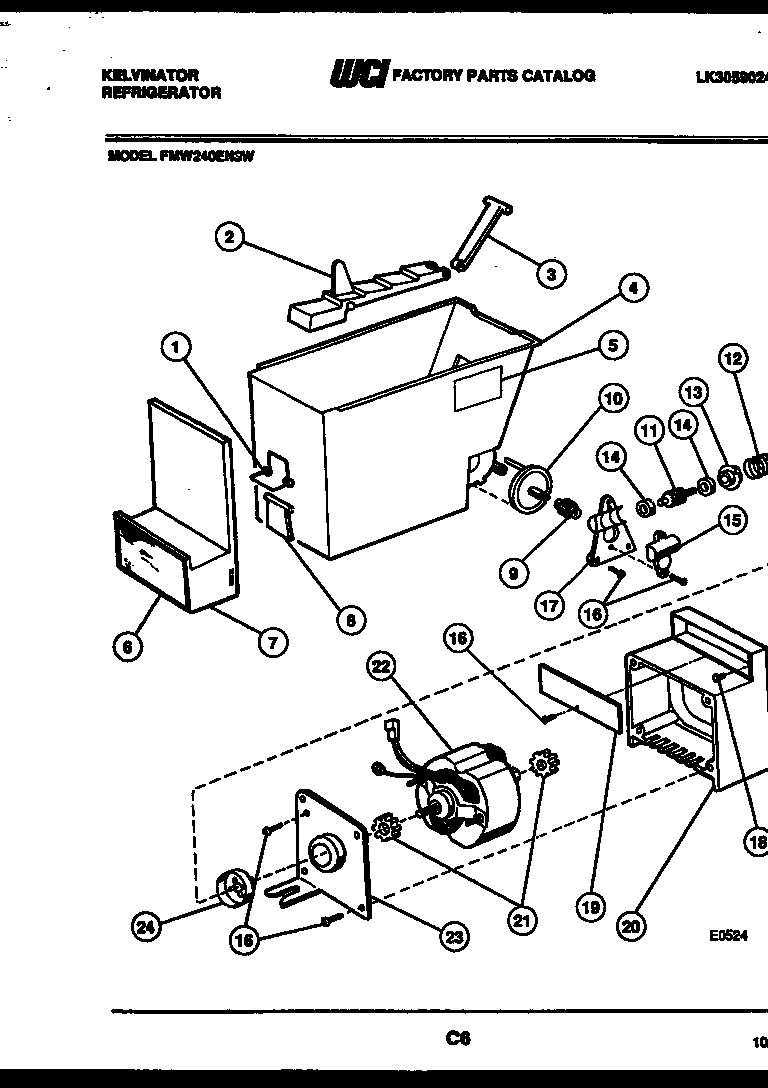

FMW240EN3V 08 – ICE DISPENSER

Products

Position	Product
1	SPRING-ICE DOOR
2	WCI G174413-01
3	WCI G177697-01
4	WCI G177213-01
5	LABEL-ICE DISP
6	WCI 3015134
7	WCI 3015828
8	WCI G174407-01
9	WCI G174702
10	DISC, ICE RAM DRIVE
11	WCI G174406
12	SPRING-ILE DISP DRIVE
13	COUPLING-ICE DISP CONT
14	WCI G177695
15	COVER-HOUSING ICE RAM
16	5304455650 Frigidaire Refrigerator Screw
17	HOUSING, ICE RAM DRIVE
18	5304455852 Frigidaire Refrigerator Screw
19	COVER-ICE DISP MOTOR
20	HOUSING-ICE DISP MOTOR
21	GROMMET-ICE DISP MOTOR (2)
22	MOTOR-ICE DISP RAM
23	BRACKET-ICE DISP MTR
24	COUPLING-ICE DISP MOTOR
