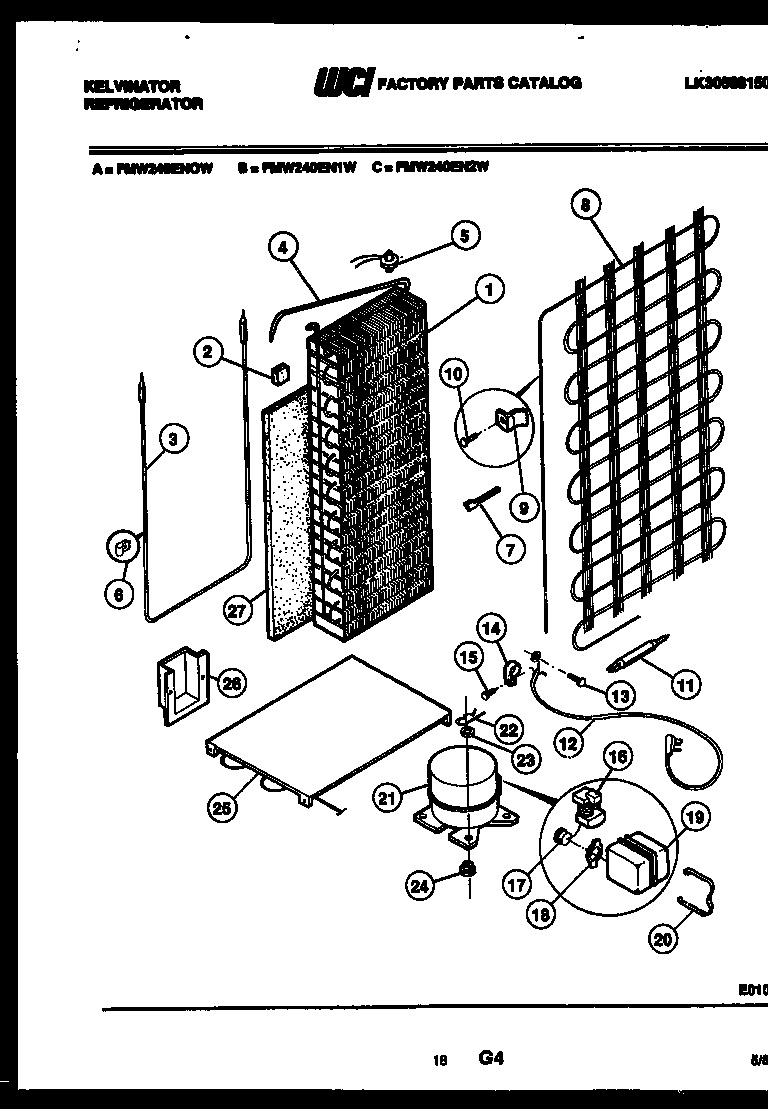

FMW240ENOF 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

FMW240ENOF 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FMW240ENOF 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*41986WCI G189379
*41986WIRING HARNESS-COMPR & LIGHTS
1EVAPORATOR
2WCI G169493
3WCI G175351
4HEAT EXCHANGER
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI G167363
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8WCI G188643
9BRACKET, COND. MTG (4)
105308000039 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
12CORD, SERVICE
145303001199 Frigidaire Refrigerator Wiring Harness Clamp
155304455651 Frigidaire Refrigerator Screw
16WCI G182225-05
17WCI G188608
18RETAINER, OVERLOAD
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21WCI G189461
22CLIP, COMPRESSOR MOUNTING (4)
23WASHER, COMPRESSOR MOUNTING (4)
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25AWCI G171111
25WCI G188555
25BBRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25C218843801 Frigidaire Refrigerator Screw
26WCI G183584
27WCI G169641
