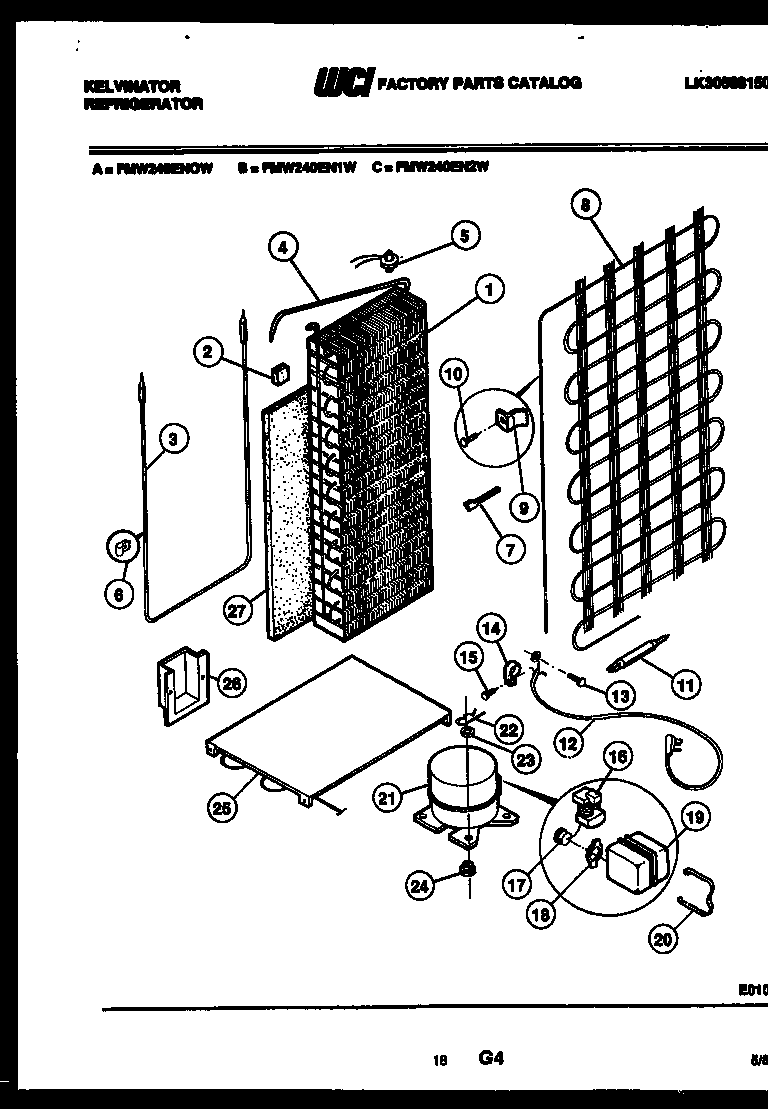

FMW240ENOV 10 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*41986	WCI G189379
*41986	WIRING HARNESS-COMPR & LIGHTS
1	EVAPORATOR
2	WCI G169493
3	WCI G175351
4	HEAT EXCHANGER
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	WCI G167363
7	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8	WCI G188643
9	BRACKET, COND. MTG (4)
10	5308000039 Frigidaire Refrigerator Screw
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	CORD, SERVICE
14	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
15	5304455651 Frigidaire Refrigerator Screw
16	WCI G182225-05
17	WCI G188608
18	RETAINER, OVERLOAD
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
21	WCI G189461
22	CLIP, COMPRESSOR MOUNTING (4)
23	WASHER, COMPRESSOR MOUNTING (4)
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25A	WCI G171111
25	WCI G188555
25B	BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
25C	218843801 Frigidaire Refrigerator Screw
26	WCI G183584
27	WCI G169641
