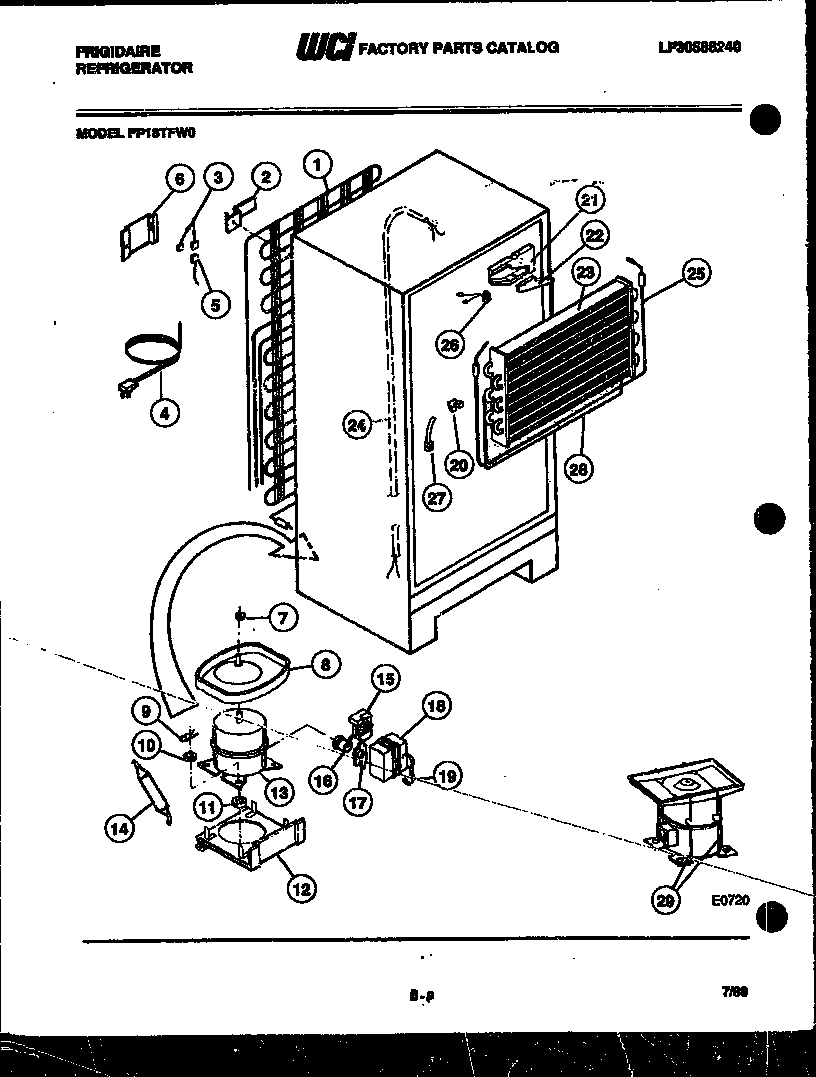

FP18TFF0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*15816	WCI 9960001
1	WCI 8008779
2A	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
2	BRACKET-CONDENSER MOUNTING (4)
3	WCI 8006993
4	WCI 8000064
5	WCI 8009628
6	WCI 8013644
7	LOCK NUT-PAN MOUNTING
8A	SOUND TAPE-PAN (NON-ILLUSTRATED)
8	DEFROST PAN-SERVICE COMPRESSOR
9	CLIP (4)
10	WASHER (4)
11	WCI 8008778
12	WCI 8013663
13	WCI 9960015
14	WCI 8000027
15	WCI 8012949
16	WCI 8016572
17	CLIP-OVERLOAD
18	WCI 8006982
19	WCI 8000117
20	WCI 8017227
21	WCI 8013648
22	WCI 8013646
23	WCI 8000062
24	WCI 8010274
25	WCI 8000061
26	WCI 8000073
27	WCI 8000110
28	INSULATION-EVAPORATOR
29	WCI 8950024
