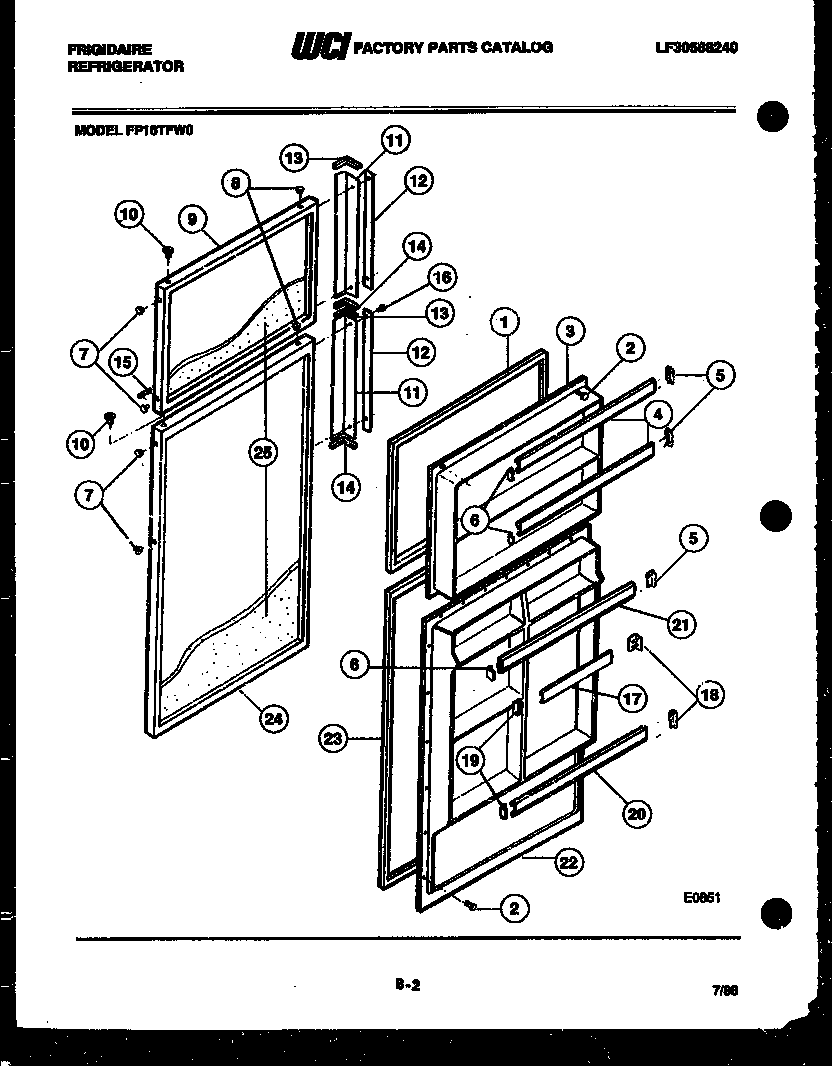

FP18TFL0 02 – DOOR PARTS

Products

Position	Product
1	WCI 3018791
2	SCREW-PANEL MOUNTING (56)
3	WCI 8009836
4	DOOR RACK-FREEZER (2)
5	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
7	PLUG-HANDLE, ALMOND
8	PLUG-HINGE, ALMOND
9	WCI 8017544
10	HINGE BEARING (8)
11	HANDLE ASSEMBLY WITH CAP & TRIM (2)
12	TRIM-HANDLE (2)
13	END CAP-TOP (2)
14	END CAP-BOTTOM (2)
15	WCI 3018385
16	SCREW-HANDLE MOUNTING (4)
17	215516220 Frigidaire Refrigerator Door Rack
18	WCI 3018798
19	WCI 3018799
21	DOOR RACK-TOP
22	WCI 8015545
23	WCI 3018792
24	WCI 8017549
25	INSULATION-BULK
