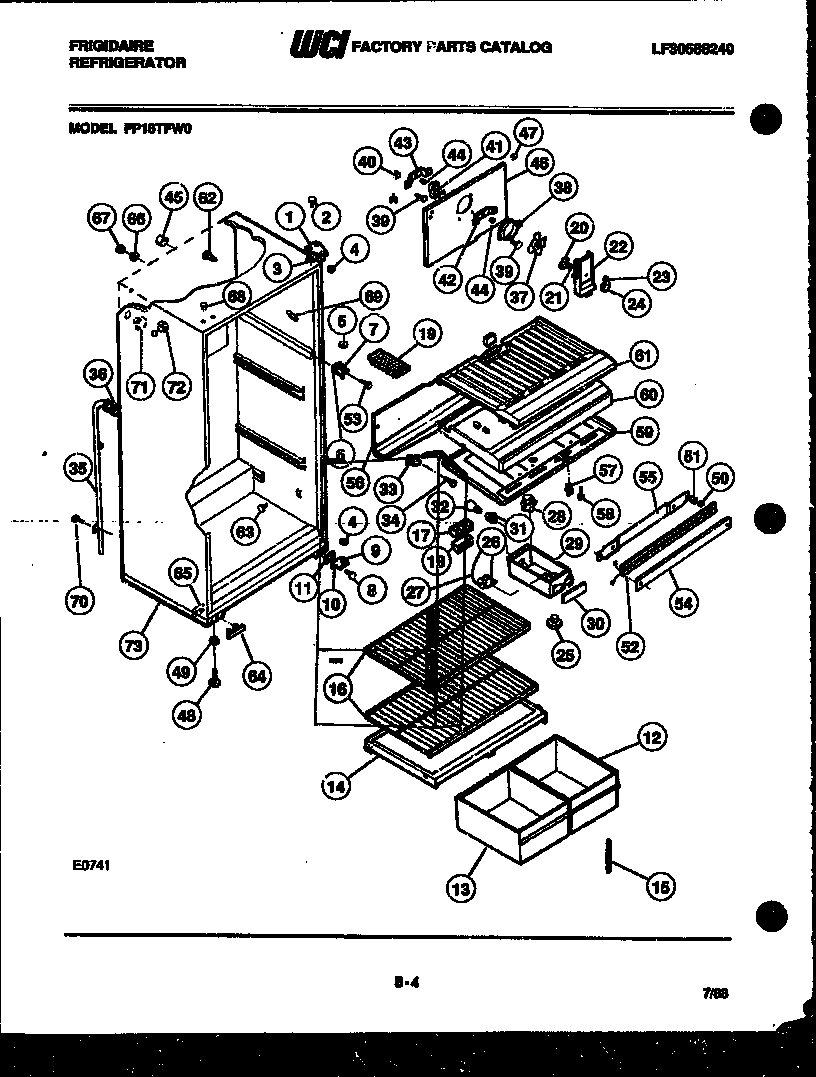

FP18TFW0 03 – CABINET PARTS

Products

Position	Product
1	WCI 8012843
2	SCREW-HINGE MOUNTING (2)
3	WCI 8012829
4	WASHER-1/4 NYLON (3)
5	WASHER-5/16 NYLON
6	WCI 8000757
7	WCI 8000184
8	SCREW-HINGE MOUNTING
9	PIN-LOWER HINGE
10	WCI 8017609
11	SHIM-LOWER HINGE
12	WCI 3018914
13	WCI 3018915
14	WCI 8010006
15	WCI 8000806
16	WCI 8009921
17	WCI 8000071
18	WCI 8000055
19	ICE CUBE TRAY (2)
20	WCI 8000066
21	WCI 8000067
22A	SCREW-COVER MOUNTING (NON-ILLUSTRATED)
22	WCI 8009820
23	WCI 8009793
24	WCI 8009823
25	WCI 8010011
26	WCI 8017218
26A	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
27	WCI 8003637
28	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
28A	WCI 8000008
29	WCI 8009782
30	WCI 8009922
31	WCI 8000129
32	LIGHT BULB
33	WCI 8000056
34	WCI 8013647
35	WCI 8010012
36	WCI 8009755
37	WCI 8000010
38	WCI 8000124
39	SCREW-PANEL MOUNTING (56)
40	WCI 8000107
41	WCI 8004176
42	WCI 8000043
43	WCI 8000042
44	WCI 8000032
45	WCI 8000004
46	WCI 8009771
47	WCI 8000126
48	SCREWS LEVELING (4)
49	WCI 8003584
50	WCI 8003607
51	WCI 8010007
52	WCI 3018916
53	SCREW-HINGE/MULLION (4)
54	WCI 8010025
55	WCI 8010008
56	WCI 8009772
57	SWITCH, LIGHT
58	SCREW-TOP MOUNTING (3)
59	TOP-REFRIGERATOR
60	WCI 8009751
60A	WCI 8006993
61	WCI 8015543
62	WCI 8000097
63	PLUG-REFRIGERATOR LINER (2)
64	WCI 8003585
65	TAPPING PLATE (4)
66	WCI 8006970
67	WCI 8006971
68	WCI 8007099
69	WCI 8010014
70	SCREW-TUBE MOUNTING (2)
71	WCI 8013636
72	WCI 8016571
73	WCI 8010092
