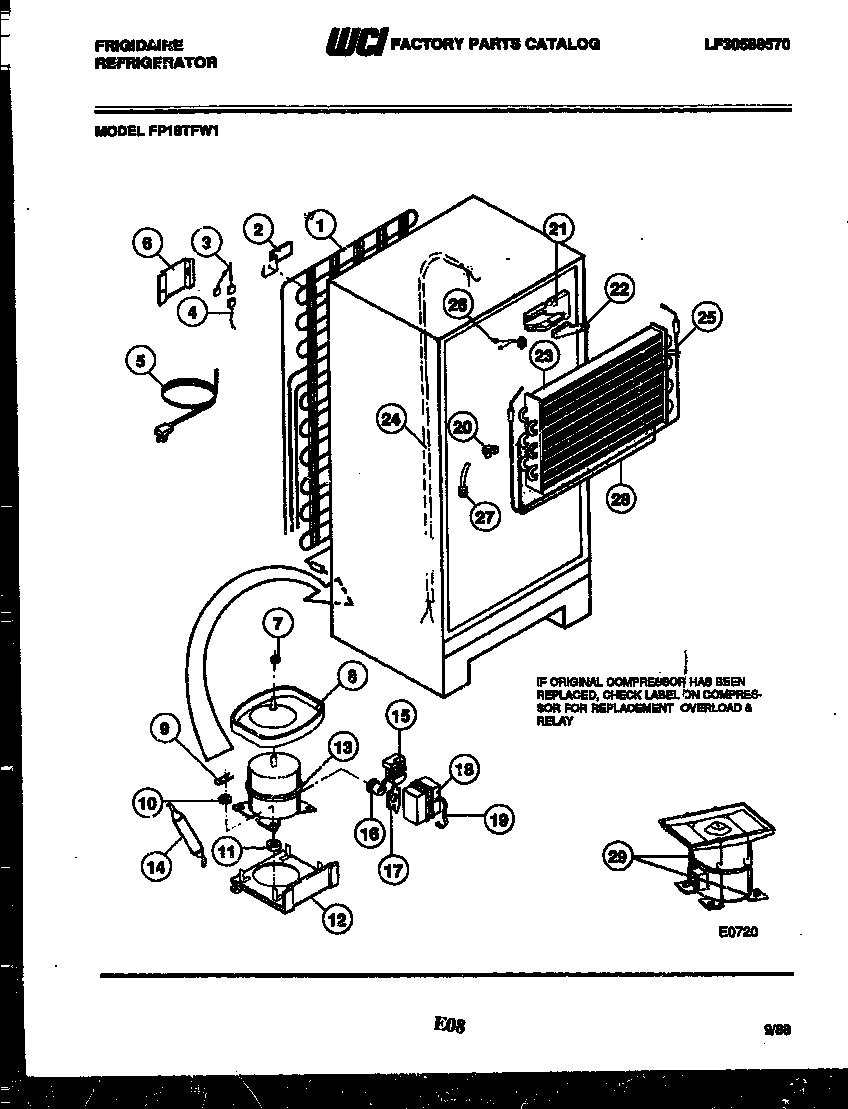

FP18TFW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*21286	WCI 9960001
1	WCI 8008779
2A	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
2	BRACKET-CONDENSER MOUNTING (4)
3	WCI 8006993
4	WCI 8009628
5	WCI 8000064
6	WCI 8013644
7	LOCK NUT-PAN MOUNTING
8B	SOUND TAPE-PAN (NON-ILLUSTRATED)
8A	DEFROST PAN-SERVICE COMPRESSOR
8	DEFROST PAN-ORIGINAL
9	CLIP (4)
10	WASHER (4)
11	WCI 8008778
12	WCI 8013663
13	COMPRESSOR
14	WCI 8000027
15	RELAY-ORIGINAL
15A	WCI 3007171
16	WCI 3201563
16A	WCI 3007416
17	OVERLOAD CLIP
18	WCI 8016583
19A	5303006412 Frigidaire Refrigerator Cover Mounting Strap
19	WCI 8016584
20	WCI 8017227
21	WCI 8013648
22	WCI 8013646
23	WCI 8000062
24	WCI 8010274
25	WCI 8000061
26	WCI 8000073
27	WCI 8000110
28	INSULATION-EVAPORATOR
29	PAN RETAINER KIT-SERVICE
