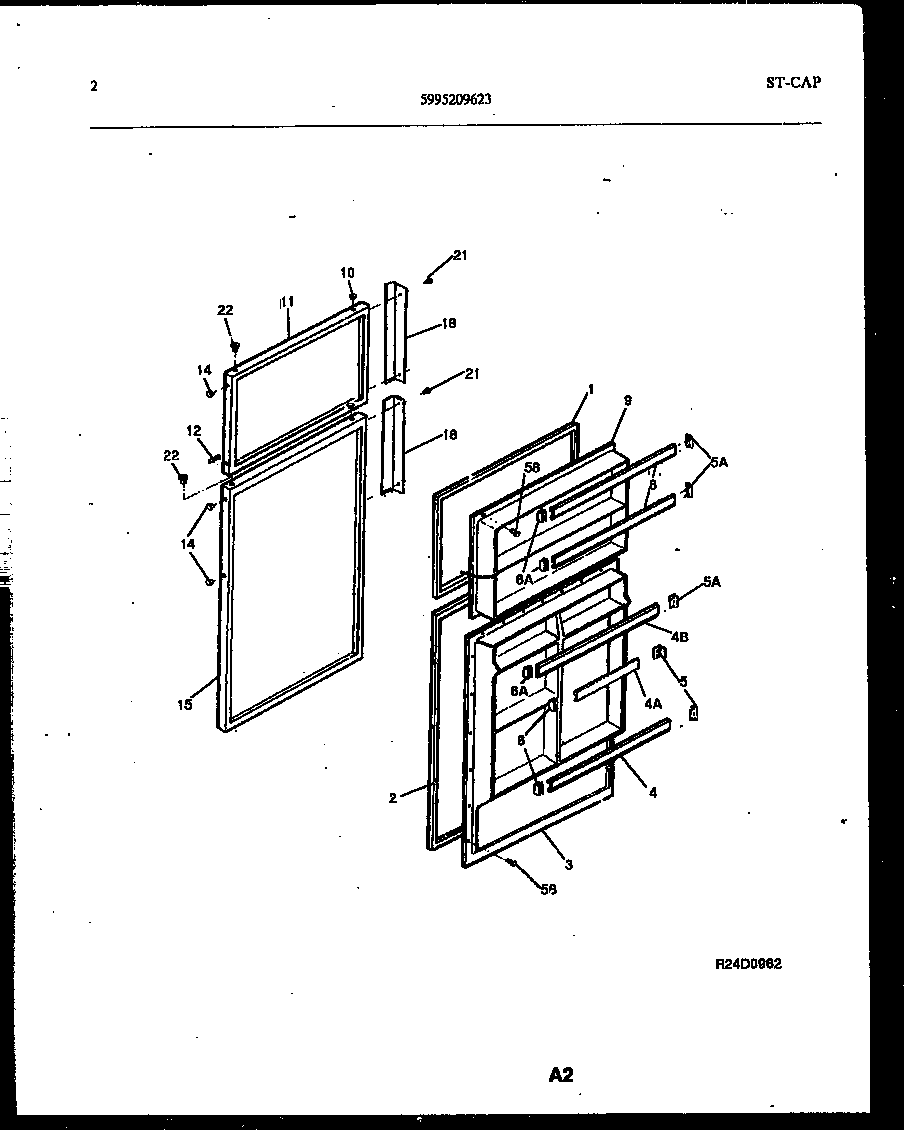

FP18TFW4 02 – DOOR PARTS

FP18TFW4 02 – DOOR PARTS

Written by

in

FP18TFW4 02 – DOOR PARTS

Products

PositionProduct
*52518INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303018791
2WCI 5303018792
3WCI 5303276774
4BDOOR RACK-TOP
4A215516220 Frigidaire Refrigerator Door Rack
5WCI 5303205649
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
6WCI 5303204840
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
8DOOR RACK-FREEZER (2)
9WCI 08009836
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 08017540
12NAMEPLATE
14240494001 Frigidaire Refrigerator Plug Button
15WCI 08017545
18HANDLE ASSEMBLY WITH CAP & TRIM (2)
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
