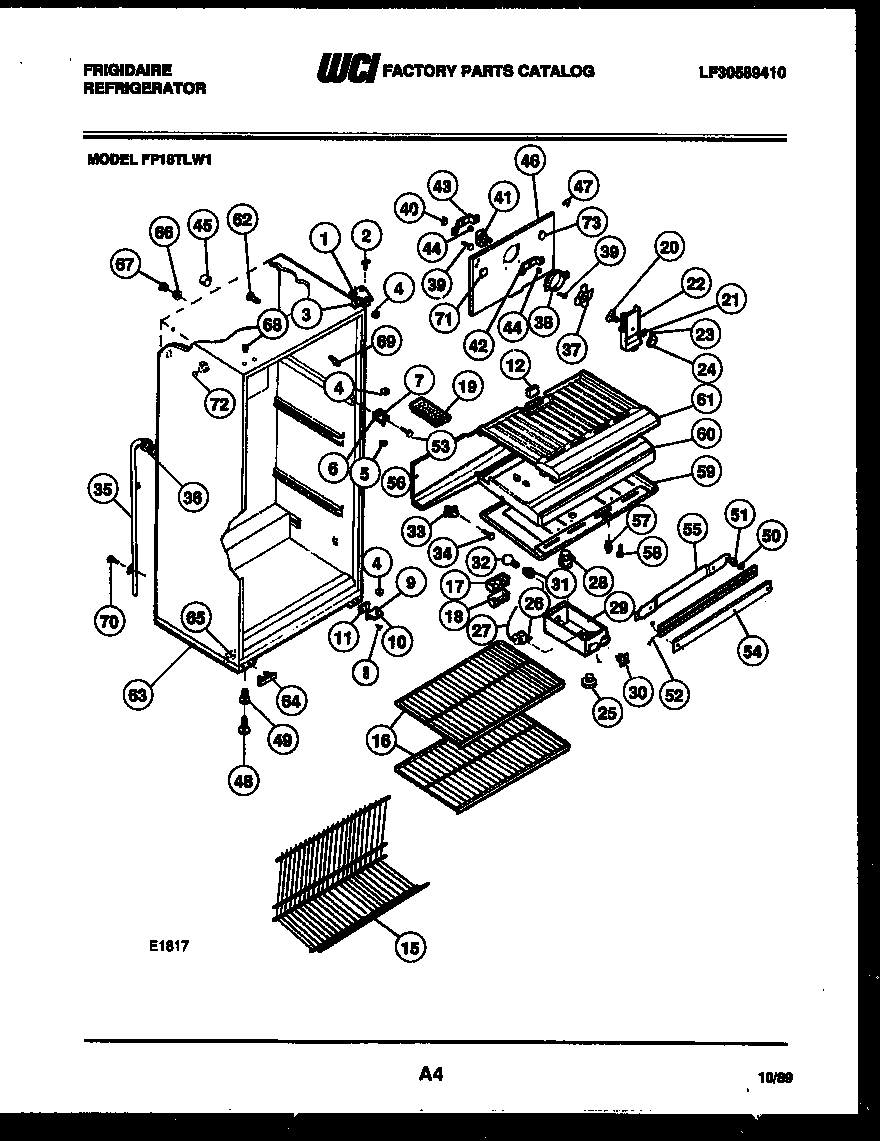

FP18TLW1 03 – CABINET PARTS

Products

Position	Product
1	WCI 08012843
2	241710601 Frigidaire Refrigerator Screw
3	WCI 08012829
4	WCI 08000007
5	WCI 08000100
6	WCI 08000757
7	WCI 08000184
9	5303001321 Frigidaire Refrigerator Lower Hinge Pin
10	HINGE-BRACKET-BOTTOM
11	SHIM
12	WCI 08000185
15	WCI 5303207181
16	SHELF (2)
17	WCI 08000071
18	WCI 08000055
19	WCI 01121808
20	WCI 08000066
21	WCI 08000067
22	WCI 08009820
23	WCI 08009793
24	LABEL, KNOB
25	WCI 08010011
26A	WCI 08000009
26	WCI 3200810
27	TUBE
28	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
28A	5304455649 Frigidaire Refrigerator Screw
29A	WCI 08009816
29	CONTROL BOX
30	WCI 3201560
31	WCI 08000129
32	316538904 Frigidaire Oven Lamp Light
33	WCI 08000056
34	PIN-PUSH (2)
35	WCI 08010012
36	RING-SEAL
37	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
38	WCI 08000124
39	5304455651 Frigidaire Refrigerator Screw
40	WCI 08000107
41	5300158289 Frigidaire Evaporator Fan Motor
42	WCI 3205118
43	WCI 3205119
44	G187559 Frigidaire Refrigerator Bushing
45	TUBE
46	WCI 08009771
46A	5304455650 Frigidaire Refrigerator Screw
47	WCI 08000126
48	SCREW-LEVELING (4)
49	WCI 08003584
50	WASHER-MULLION (4)
51	SPACER (NON-ILLUSTRATED)
52	WCI 3018916
53	WCI 08012258
54	WCI 3200366
55	WCI 08010008
56	WCI 08009772
57	5309918806 Frigidaire Refrigerator Light Switch Door
58	WCI 08000070
59	TOP-REFRIGERATOR
60A	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
60	WCI 08009751
61	WCI 08015543
62	WCI 08000097
63	WCI 08010092
64	WCI 08003585
65	TAPPING PLATE (2)
66	FERRULE
67	FERRULE
68	WCI 08007099
69	WCI 3202336
71	WCI 08013636
72	WCI 08016571
73	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
