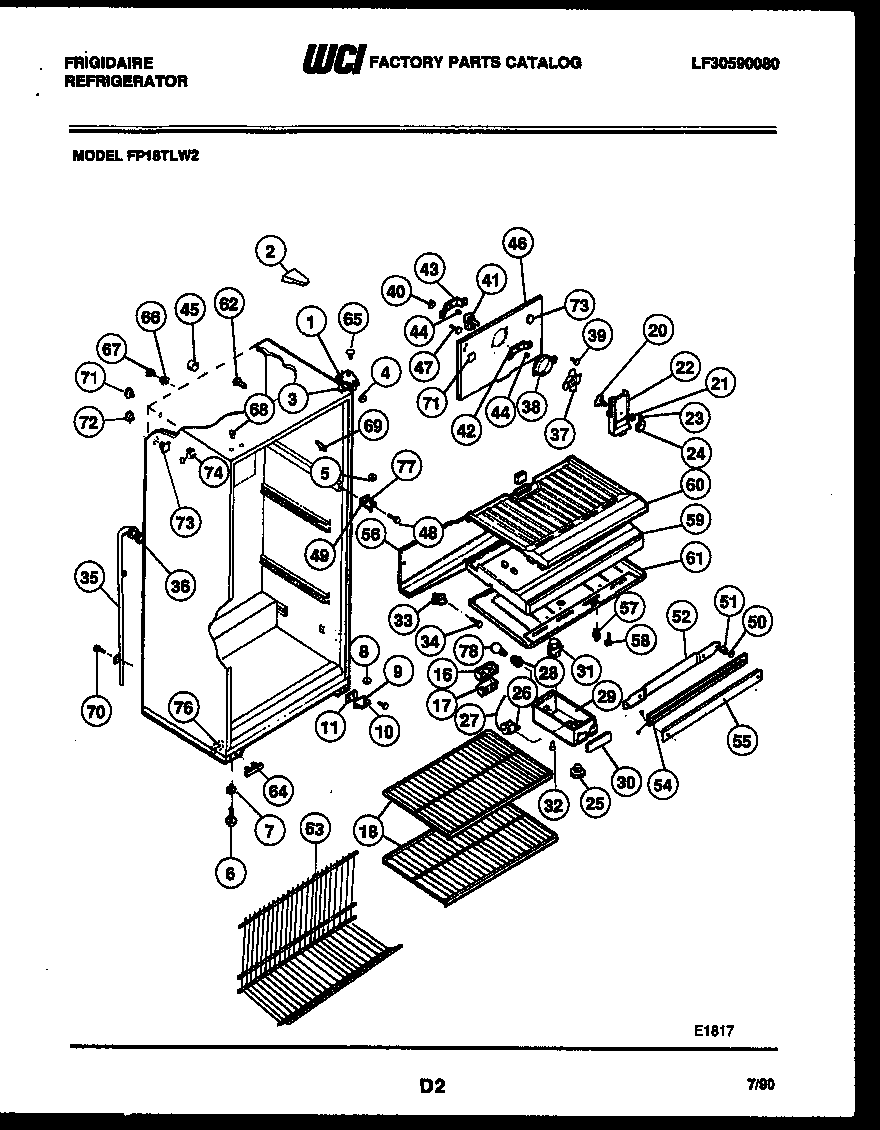

FP18TLW2 03 – CABINET PARTS

Products

PositionProduct
*34397WCI 01121808
*34397WCI 08016565
1BRACKET-UPPER HINGE
2WCI 08012820
3SHIM – UPPER HINGE
4WASHER, .34 X .62 X .05, NYLON
5WCI 5303018791
6SCREW-LEVELING (4)
7WCI 5308003584
8241710601 Frigidaire Refrigerator Screw
95303001321 Frigidaire Refrigerator Lower Hinge Pin
10HINGE BRACKET – BOTTOM
11SHIM
16DEFLECTOR-AIR
17COVER – AIR DEFLECTOR
18SHELF (2)
20DAMPER-FAN COVER
21Nut,push-on
22WCI 08009820
23WCI 5303210347
25WCI 5308010011
26AWCI 08000009
26WCI 5303200810
27TUBE
28SOCKET-LIGHT/LAMP
29CONTROL BOX
30WCI 08009816
31215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
32AWCI 3201560
325304455649 Frigidaire Refrigerator Screw
33WCI 5308000056
34PIN-PUSH (2)
35Nut,lock `1/4-20 ,drain pan mtg
36WCI 5303207353
375308000010 Frigidaire Refrigerator Evaporator Fan Blade
38RING-FAN ORIFICE
395304455650 Frigidaire Refrigerator Screw
40WCI 5308000107
415300158289 Frigidaire Evaporator Fan Motor
42WCI 08000043
43WCI 08000042
44G187559 Frigidaire Refrigerator Bushing
45TUBE
46WCI 5308009771
46AINSULATOR-EVAP, PLASTIC
47NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
48WCI 08000127
49AWASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
49BRACKET-CTR HINGE
50WASHER-MULLION (4)
51SPACER-MULLION MTG, STEEL
52WCI 5303208254
54WCI 5303200366
55WCI 5308010008
56WCI 5303001470
575309918806 Frigidaire Refrigerator Light Switch Door
58WCI 08000070
59DIVIDER, STYROFOAM
60WCI 5303001505
61TOP PANEL-REFR, W/SNAP BUSHING
62SUPPORT-COIL COVER
63WCI 5303207181
64COVER-HOLE, LOWER HINGE
66FERRULE
67FERRULE
68PLUG-BUTTON, WHITE
69TRIM-CABINET CORNER, WHITE
705308000039 Frigidaire Refrigerator Screw
71WCI 08000040
72WCI 08000014
73BUTTON – DECORATIVE PLUG
74PLUG, BUTTON, CABINET LINER (NI)
76TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
77WCI 08000184
78316538904 Frigidaire Oven Lamp Light
