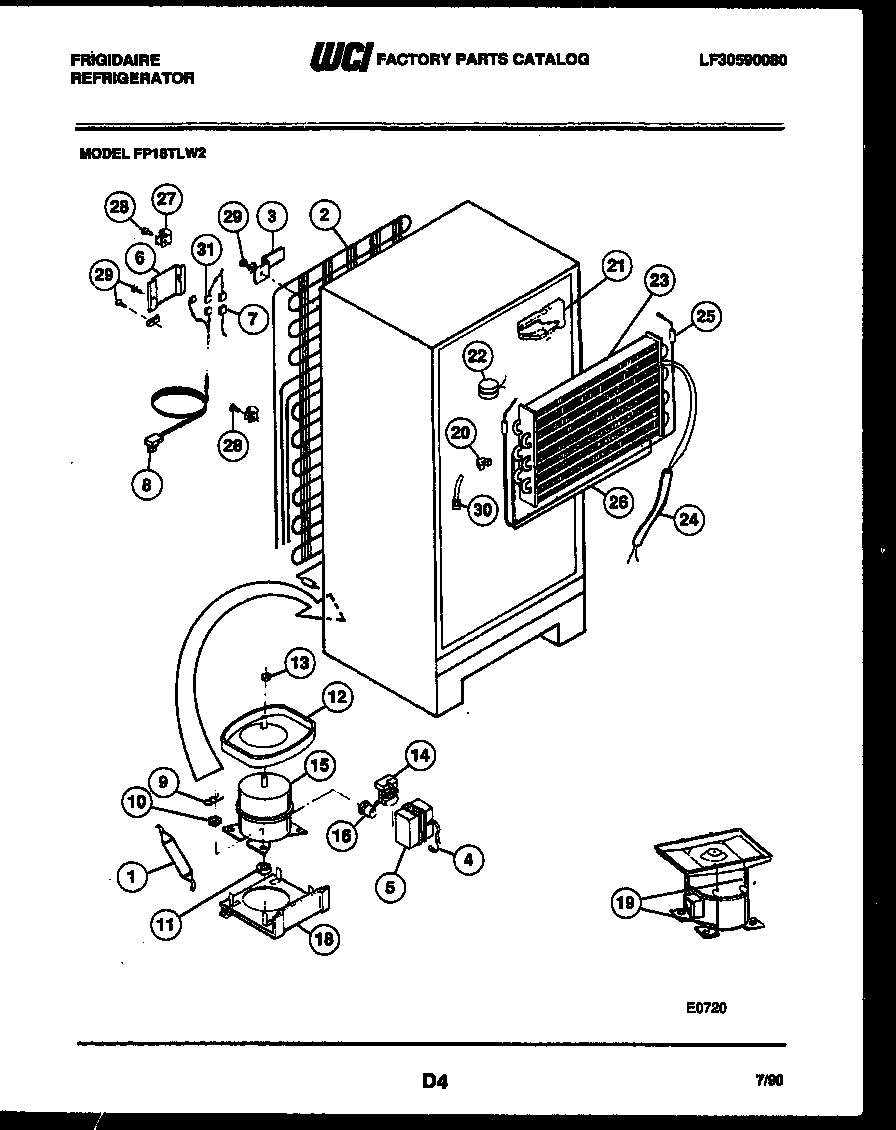

FP18TLW2 04 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T08:52:01+00:00FP18TLW2 04 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| 1 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 2 | WCI 5300163133 |
| 3A | WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED) |
| 3 | BRACKET-MTG (4) |
| 4 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 6 | WCI 5303001197 |
| 7 | WIRING HARNESS, COMPRESSOR, |
| 8 | CORD-ELECTRIC POWER |
| 9 | CLIP (4) |
| 10 | WCI 08003597 |
| 11 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 12 | PAN-DEFROST DRAIN, ORIG/SVCE COMPR |
| 13 | NUT |
| 14 | 216594300 Frigidaire Refrigerator Starter |
| 15 | COMPRESSOR W/ ELECTRICALS-SERVICE |
| 18 | WCI 5308013663 |
| 19 | WCI 08950024 |
| 20 | INSULATION BLOCK, LH |
| 21 | INSULATION BLOCK, RH |
| 21A | INSULATION PLUG, RH |
| 22 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 23 | WCI 5300162506 |
| 24 | WCI 5308000728 |
| 25 | 5317842502 Frigidaire Defrost Heater |
| 26 | INSULATOR-EVAP, PLASTIC |
| 27 | WCI 08000187 |
| 28 | 5304455651 Frigidaire Refrigerator Screw |
| 29 | 5308000039 Frigidaire Refrigerator Screw |
| 30 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 31 | HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED) |
