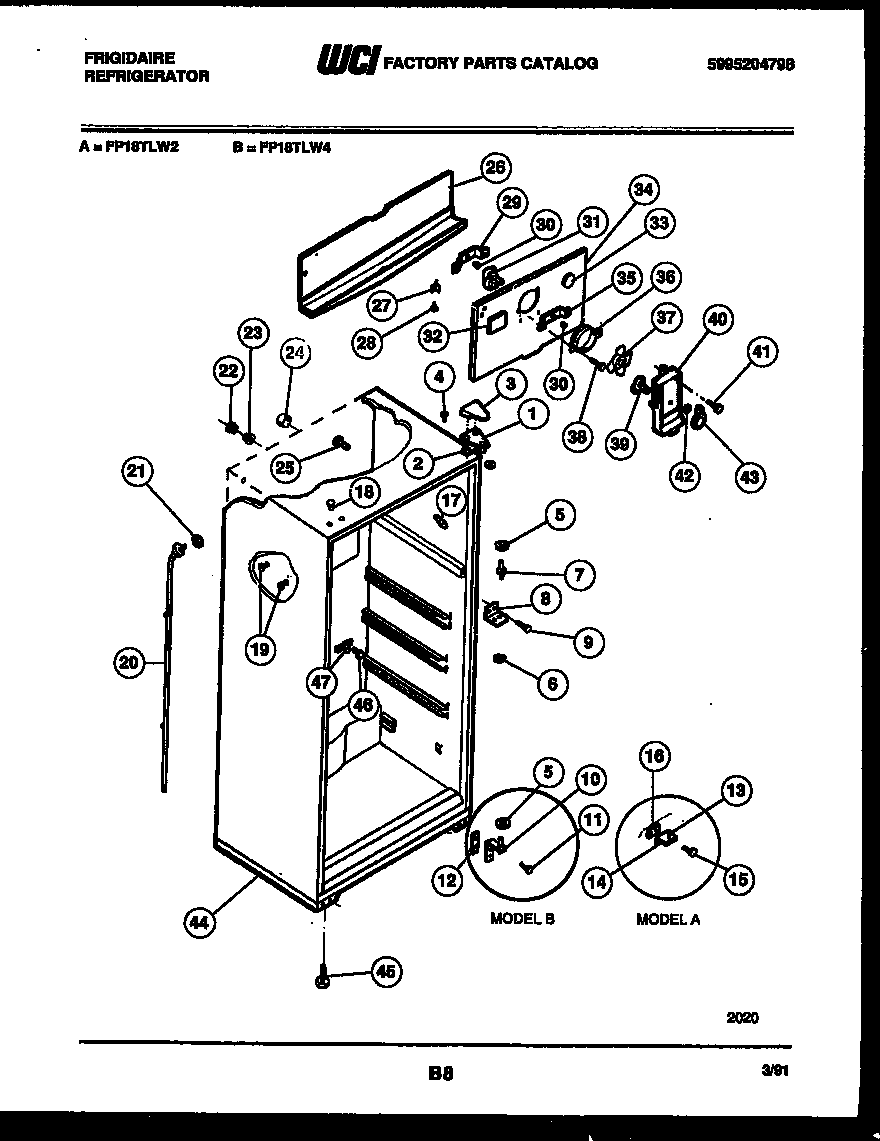

FP18TLW4 03 – CABINET PARTS

Products

PositionProduct
*42429TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1BRACKET-UPPER HINGE
2SHIM – UPPER HINGE
3COVER-UPPER HINGE, WHITE
5WASHER, .34 X .62 X .05, NYLON
6WCI 5308000186
7WCI 5308000184
8BRACKET-CTR HINGE
9WCI 5308012258
10ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
10BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
10BRACKET-LOWER HINGE, W/ HINGE PIN
11241710601 Frigidaire Refrigerator Screw
12WCI 5303212488
17TRIM-CABINET CORNER, WHITE
18PLUG-BUTTON, WHITE
19PLUG, BUTTON, CABINET LINER (NI)
20WCI 5303210377
21WCI 5303207353
22WCI 5303001287
23WCI 5303001286
24TUBE-RUBBER
25SUPPORT-COIL COVER
26WCI 5303001470
27WCI 5308000107
285304455651 Frigidaire Refrigerator Screw
29BRACKET-MOTOR MTG, REAR
30G187559 Frigidaire Refrigerator Bushing
315300158289 Frigidaire Evaporator Fan Motor
32BUTTON – DECORATIVE PLUG
335303208309 Frigidaire Refrigerator Plug Hole
34ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34WCI 5308009771
35WCI 5303205118
36RING-FAN ORIFICE
375308000010 Frigidaire Refrigerator Evaporator Fan Blade
39DAMPER-FAN COVER
40WCI 08009820
415304455650 Frigidaire Refrigerator Screw
42Nut,push-on
43WCI 5303210347
44WCI 5303212487
45Screw-leveling,(2)
46WCI 5303001361
47WCI 5308000056
