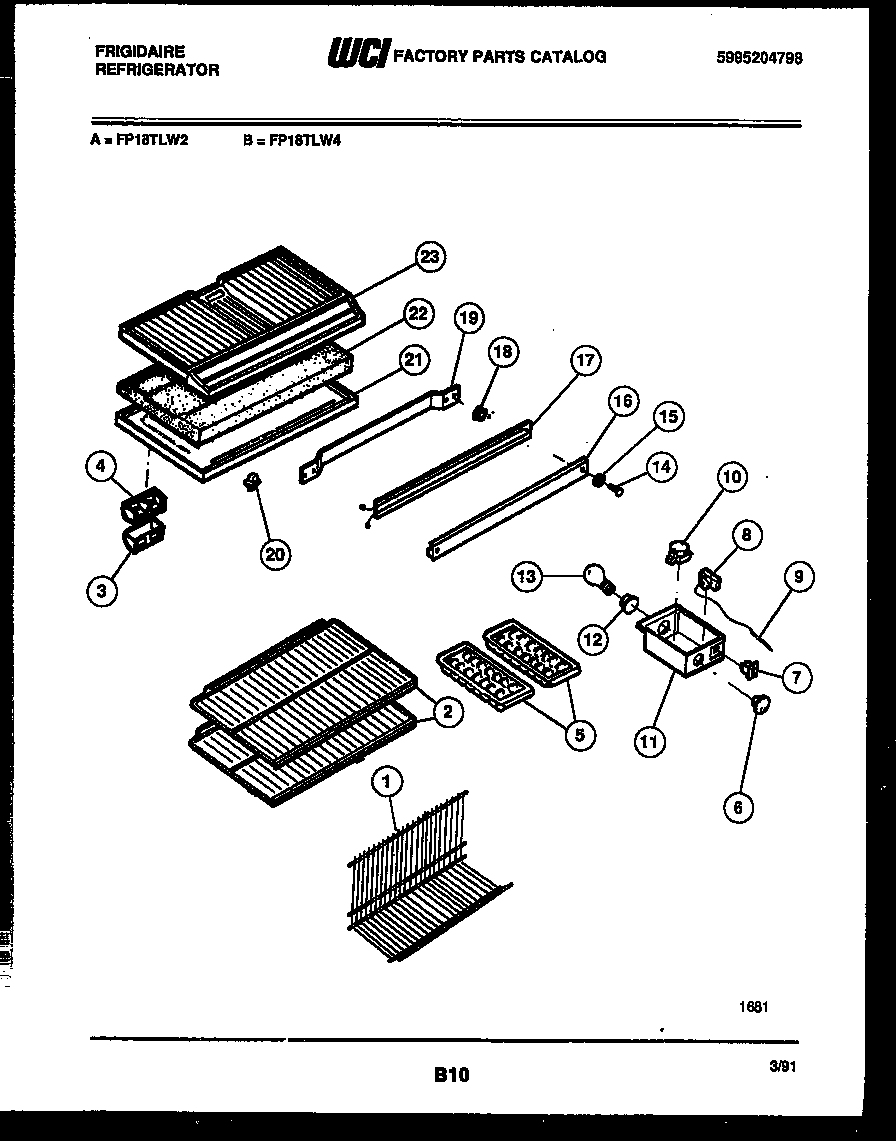

FP18TLW4 04 – SHELVES AND SUPPORTS

Products

Position	Product
*42432	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
1	WCI 5303207181
2	SHELF (2)
3	DEFLECTOR-AIR
4	COVER – AIR DEFLECTOR
5	WCI 01121808
6	WCI 5308010011
7	WCI 3201560
8	WCI 5303200810
8A	WCI 5303001260
9	TUBE
10A	5304455649 Frigidaire Refrigerator Screw
10	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
11	CONTROL BOX
11A	WCI 08009816
12	SOCKET-LIGHT/LAMP
13	316538904 Frigidaire Oven Lamp Light
14	WCI 5308012258
15	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
16	WCI 5303200366
17	WCI 5303210351
18	SPACER-MULLION MTG, STEEL
19	WCI 5308010008
20	5309918806 Frigidaire Refrigerator Light Switch Door
21A	WCI 5303001380
21	TOP PANEL-REFR, W/SNAP BUSHING
22	DIVIDER, STYROFOAM
23	WCI 5303211427
