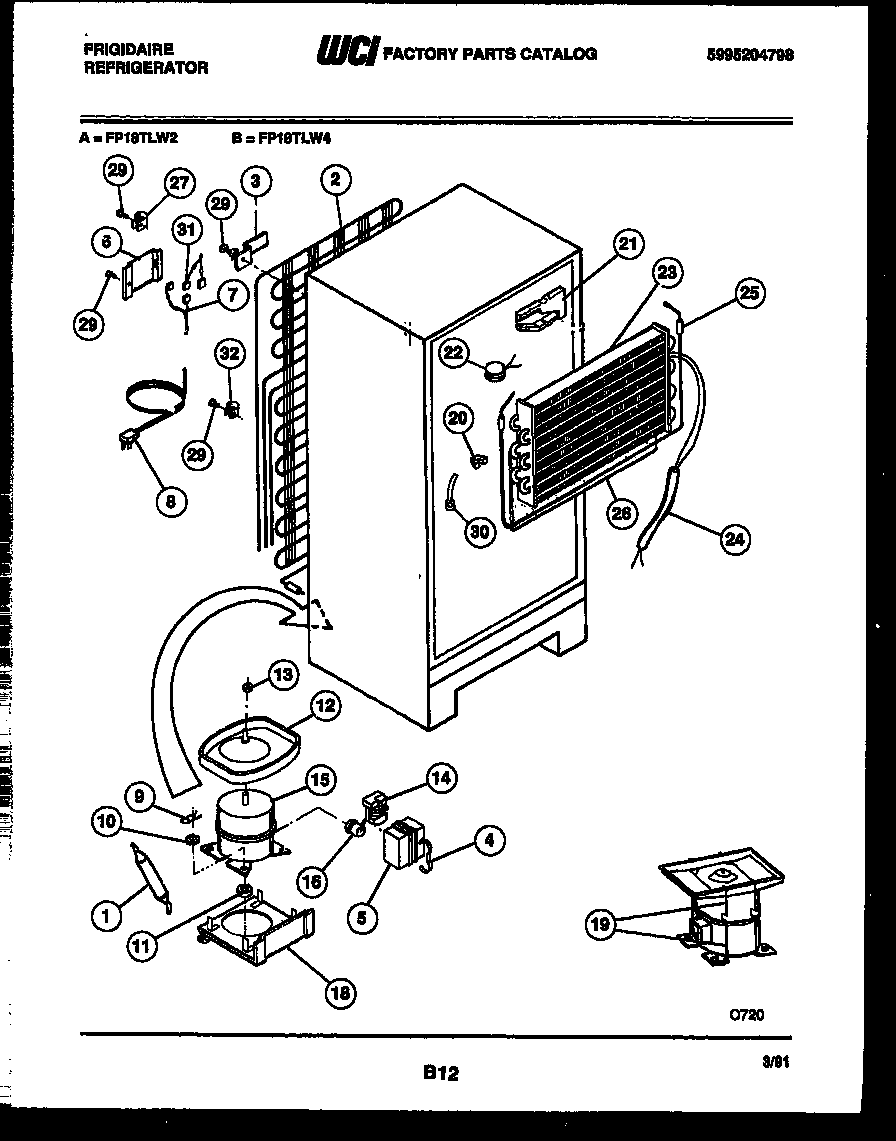

FP18TLW4 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*424345304455651 Frigidaire Refrigerator Screw
*42434HOT TUBE REPAIR KIT-SERVICE
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13Nut,lock `1/4-20 ,drain pan mtg
14216594300 Frigidaire Refrigerator Starter
15COMPRESSOR W/ ELECTRICALS-SERVICE
16WCI 5303270406
18WCI 5308013663
19PAN RETAINER KIT, SERVICE
20INSULATION BLOCK, LH
21AINSULATION PLUG, RH
21INSULATION BLOCK, RH
225303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23EVAPORATOR
24WCI 5308000728
24A5308000133 Frigidaire Refrigerator Clamp
255317842502 Frigidaire Defrost Heater
26INSULATOR-EVAP, PLASTIC
27WCI 530800133
295308000039 Frigidaire Refrigerator Screw
305308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
31HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
