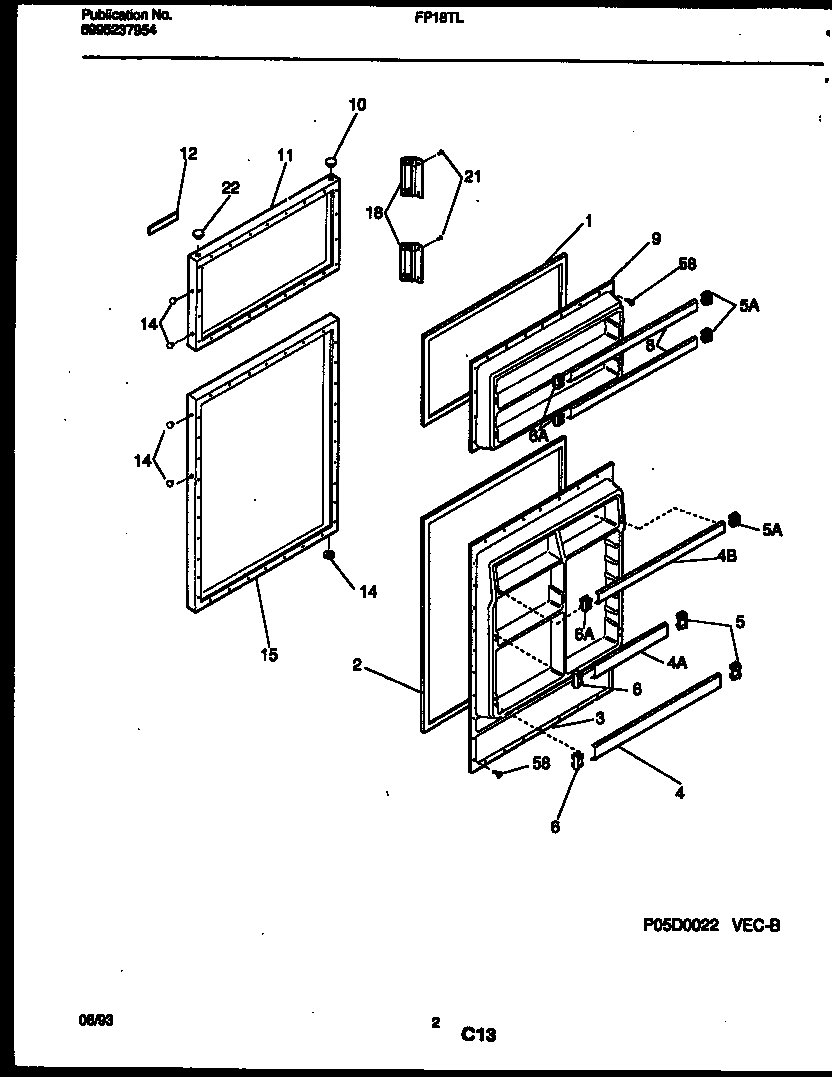

FP18TLW8 02 – DOOR PARTS

FP18TLW8 02 – DOOR PARTS

Written by

in

FP18TLW8 02 – DOOR PARTS

Products

PositionProduct
*83722INSULATION
1WCI 5303018791
2WCI 5303018792
3WCI 5303210345
4BDOOR RACK-TOP
4A215516220 Frigidaire Refrigerator Door Rack
5A5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
5WCI 5303205339
6WCI 5303204839
6A5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
8DOOR RACK-FREEZER (2)
9WCI 08009835
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917100
12NAMEPLATE
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917102
18WCI 3016496
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
