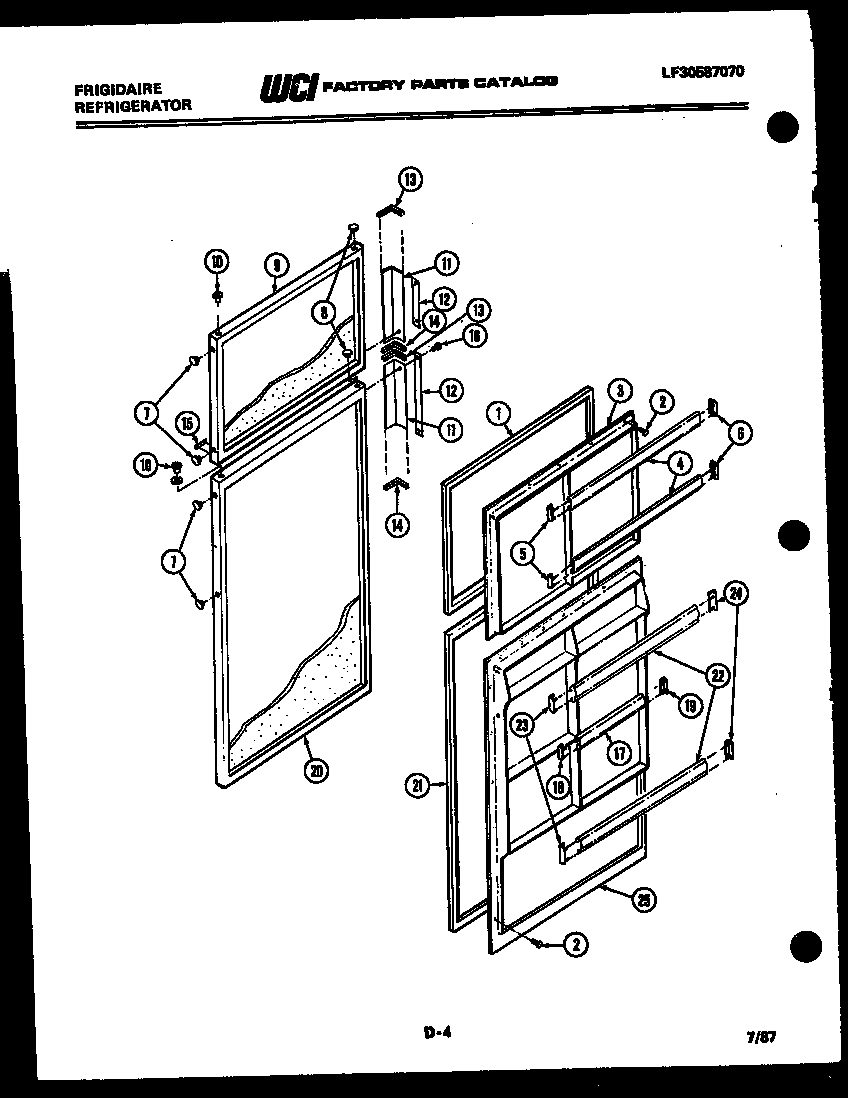

FP18TMF3 02 – DOOR PARTS

FP18TMF3 02 – DOOR PARTS

Written by

in

FP18TMF3 02 – DOOR PARTS

Products

PositionProduct
1WCI 8009734
2SCREW-PANEL MOUNTING (56)
3WCI 8009836
7BTN, PLUG, COFE
8BTN, PLUG, COFE
9PANEL-EXT-COFE
10WCI 8012077
11HANDLE-COMPLETE
12TRIM-HANDLE (2)
13END CAP-TOP (2)
14END CAP-BOTTOM (2)
15WCI 8011327
16SCREW-HANDLE MOUNTING (4)
17RACK-FRONT
18WCI 8009807
19WCI 8009809
20PANL-OUTER COFE
21WCI 8015544
22WCI 8000145
23WCI 8009896
24WCI 8009898
25WCI 8015545
25WCI 8000139
