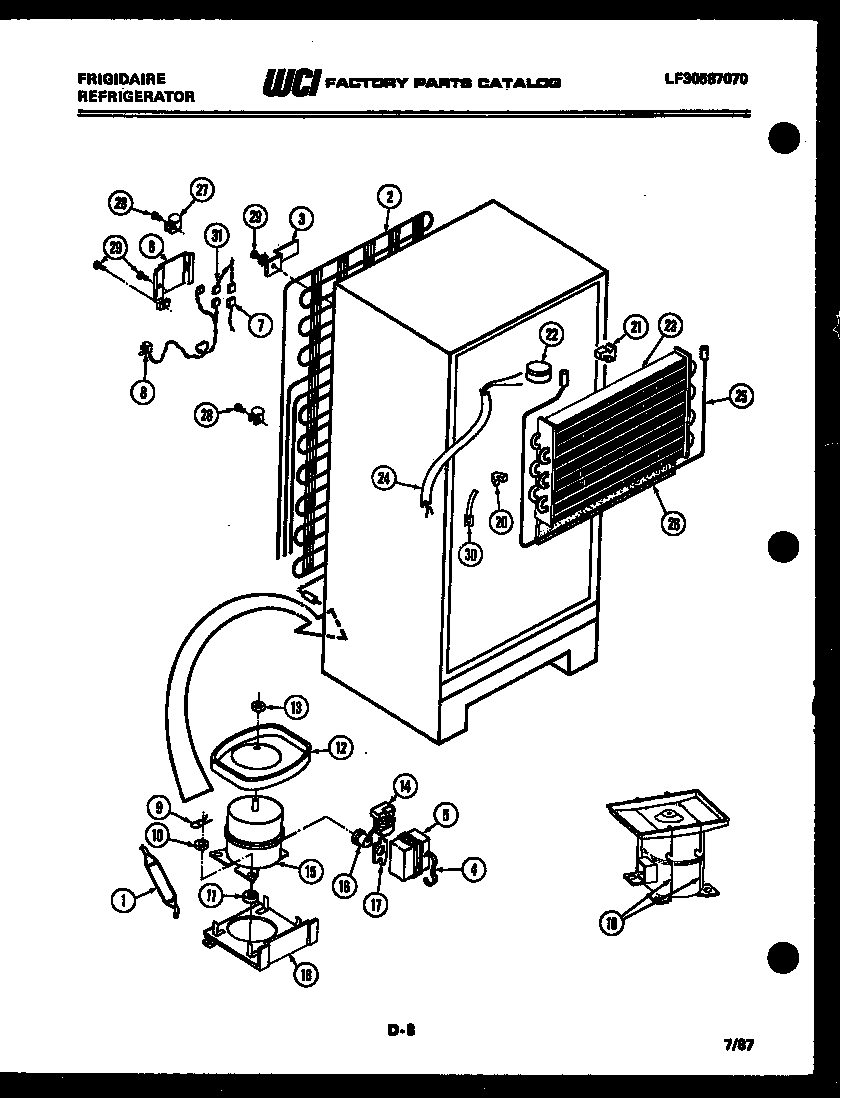

FP18TML3 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 8000027
2	WCI 8008779
3	BRACKET-CONDENSER MOUNTING (4)
4	WCI 8000117
5	WCI 8006982
6	WCI 8013644
7	WCI 8009628
8	WCI 8000064
9	CLIP (4)
10	WASHER (4)
11	WCI 8008778
12	DEFROST PAN-SERVICE COMPRESSOR
13	LOCK NUT-PAN MOUNTING
14	WCI 8012949
15	WCI 9960015
16	WCI 8007659
17	CLIP-OVERLOAD
18	WCI 9960000
19	WCI 8950024
20	WCI 8003647
21	WCI 8013648
21A	WCI 8013646
22	WCI 8000073
23	WCI 8000062
24	WCI 8010274
25	WCI 8000061
26	INSULATION-EVAPORATOR
27	WCI 8000187
28	SCREW-PANEL MOUNTING (56)
29	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
30	WCI 8000110
31	WCI 8006993
