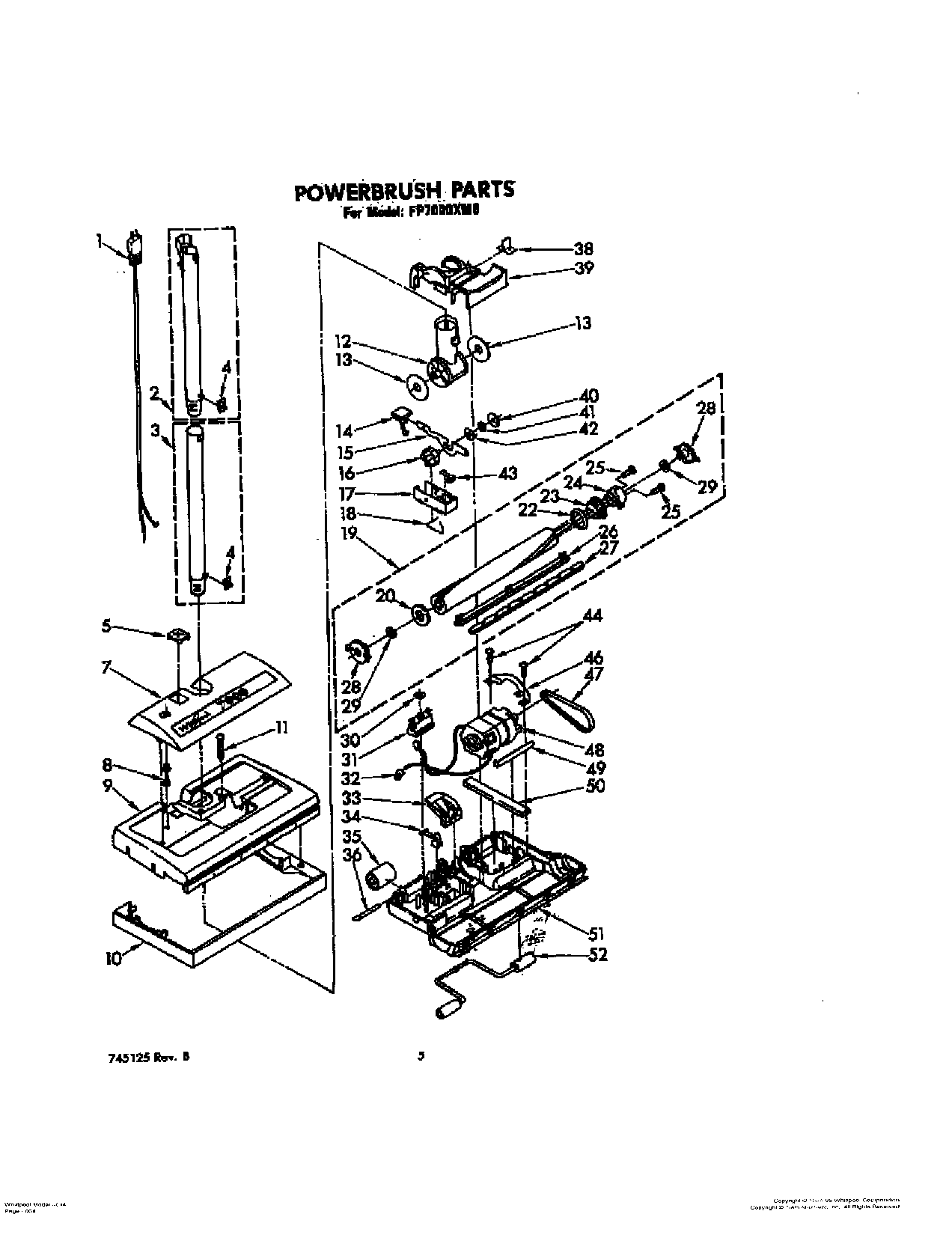

FP7000XM0 04 – POWERBRUSH PARTS

Products

Position	Product
1	Cord & Plug
2	Wand & Cord Mount Assembly
3	Wand (Lower)
4	Spring, Wandlock
5	Lens, Height Adjustment
7	Cover, Nozzle
8	Button Extension
9	Nozzle
10	Bumper
11	Screw, 8-18 x 1-7/8 (2)
12	Swivel
13	Seal, Swivel
14	Pad, Footpedal
15	Lever, Indicator
16	Cam, Indicator
17	Block, Indicator
18	Spring, Assist
19	Bearing & Brush Assembly
20	Guard, String
22	Flange, Brush Sprocket
23	Sprocket, Brush
24	End Brush
25	Screw, No.6-20 x 1“ (2)
26	Brush, Beater
27	Bar, Beater
28	Bearing & Housing Assembly (2)
29	Washer (2)
30	Seal, Overload
31	Overload Protector
32	Wire Connector
33	Release, Handle
34	Lifter
35	Roller (2)
36	Axle, Rear (2)
38	Plug, Bulb
39	Swivel Cap
40	Washer, Thrust
41	Washer, Foam
42	Catch, Indexing
43	Catch, Ratchet
44	WP488787 Whirlpool Refrigerator Screw
46	Bridge, Motor
47	Belt, Cogged (Pkg. of 1)
48	Motor
49	Spring, Motor Adjustment
50	Gasket
51	Base
52	Front Axle Assembly
