FP7500XR0 01 – SECTION

Products

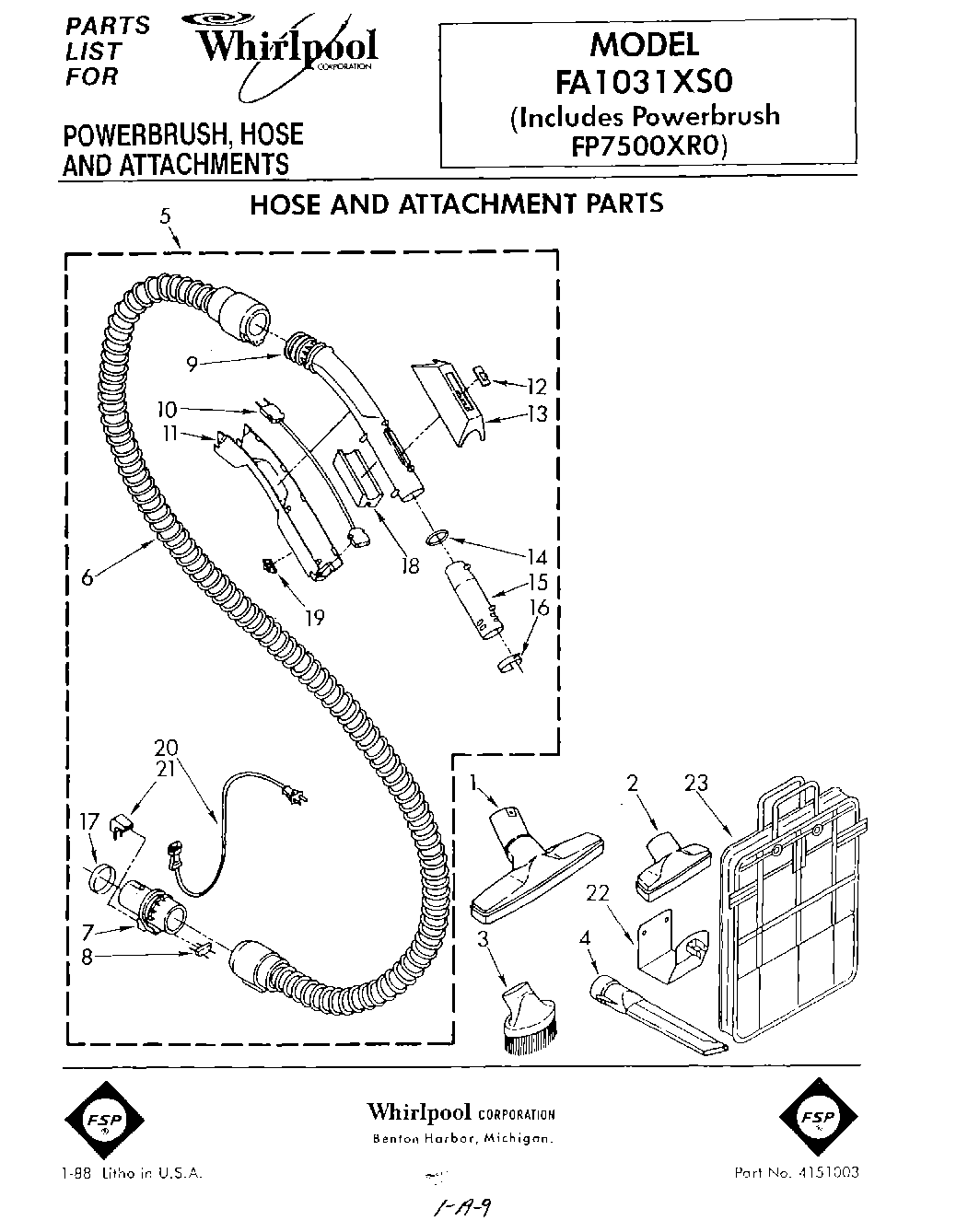

PositionProduct
1Brush, Floor
2Nozzle, Upholstery
3Brush, Dusting
4Tool, Crevice
5Hose Assembly
6Hose
7Terminal
8Plug, Male
9Housing, Center Tube
10Cord & Plug Assembly
11Switch & Lower Housing
12Control, Suction
13Housing, Upper
14“O“ Ring
15Tube (Includes Illus. 16)
16Spring, Wandlock
17Ring, Contact
18Filler, Foam
19Topper, Switch
20Cord, Power
21Plug, Double Fused
22Bracket, Hose Assembly
23Bag, Tote
