FPBC2277RF1 10 – FREEZER ICE MAKER

FPBC2277RF1 10 – FREEZER ICE MAKER

Written by

in

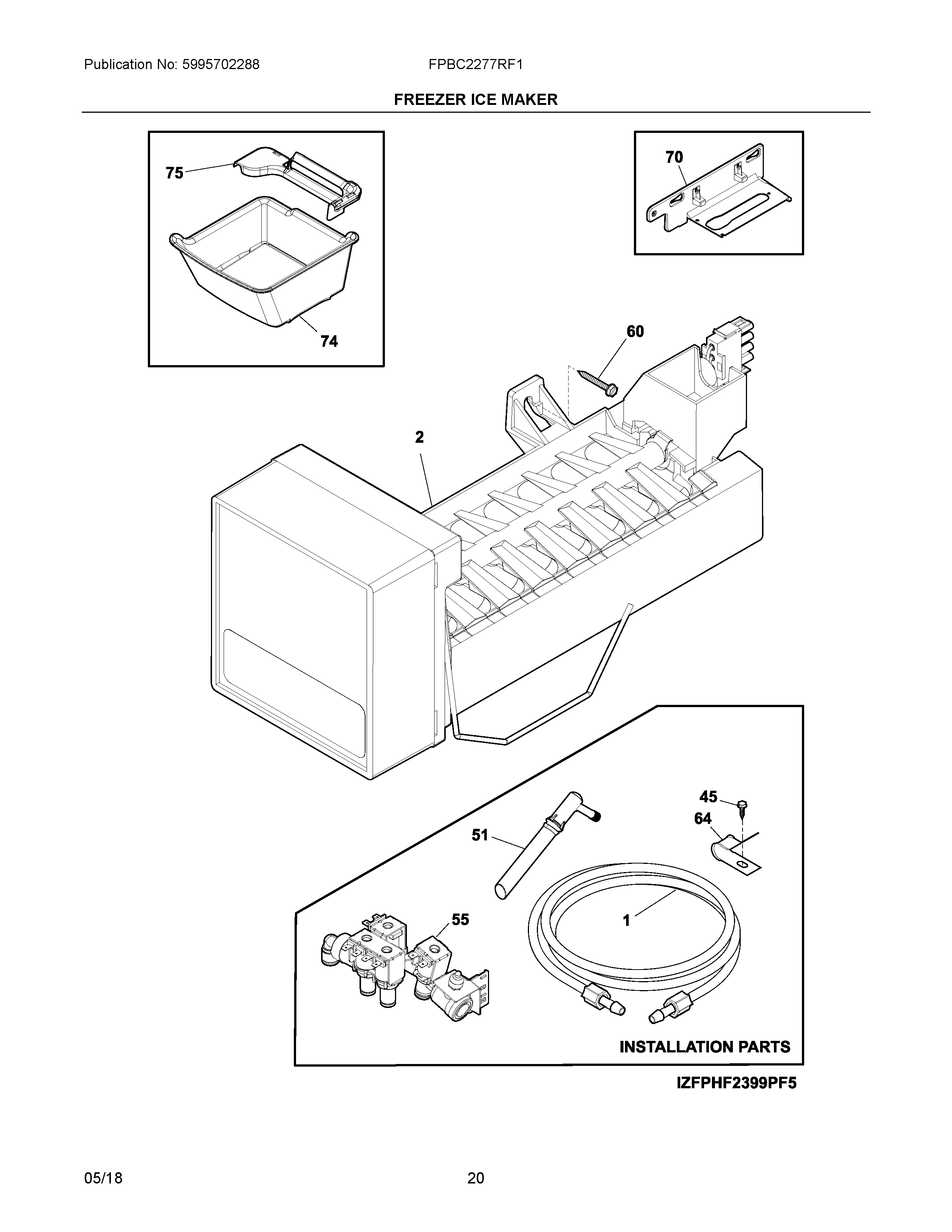

FPBC2277RF1 10 – FREEZER ICE MAKER

Products

PositionProduct
NI240396801 Frigidaire Refrigerator Tube Clamp
NID241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIC241964707 Frigidaire Refrigerator Water Tube
NIB241920106 Frigidaire Fill Tube Kit
NIA241844403 Frigidaire Refrigerator Tube
NIE242200102 Frigidaire Refrigerator Clip
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIF242220119 Frigidaire Refrigerator Water Tube
NIG242220204 Frigidaire Water Inlet Tube
1218976435 Frigidaire Refrigerator Water Inlet Tube
25303918493 Frigidaire Refrigerator Ice Maker Assembly
455303307980 Frigidaire Oven Screw
515303918602 Frigidaire Refrigerator Water Tube Kit
55QUAD WATER VALVE
60218362501 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
70242053001 Frigidaire Refrigerator Bracket
74242128001 Frigidaire Ice Container
75242240101 Frigidaire Refrigerator Shield
