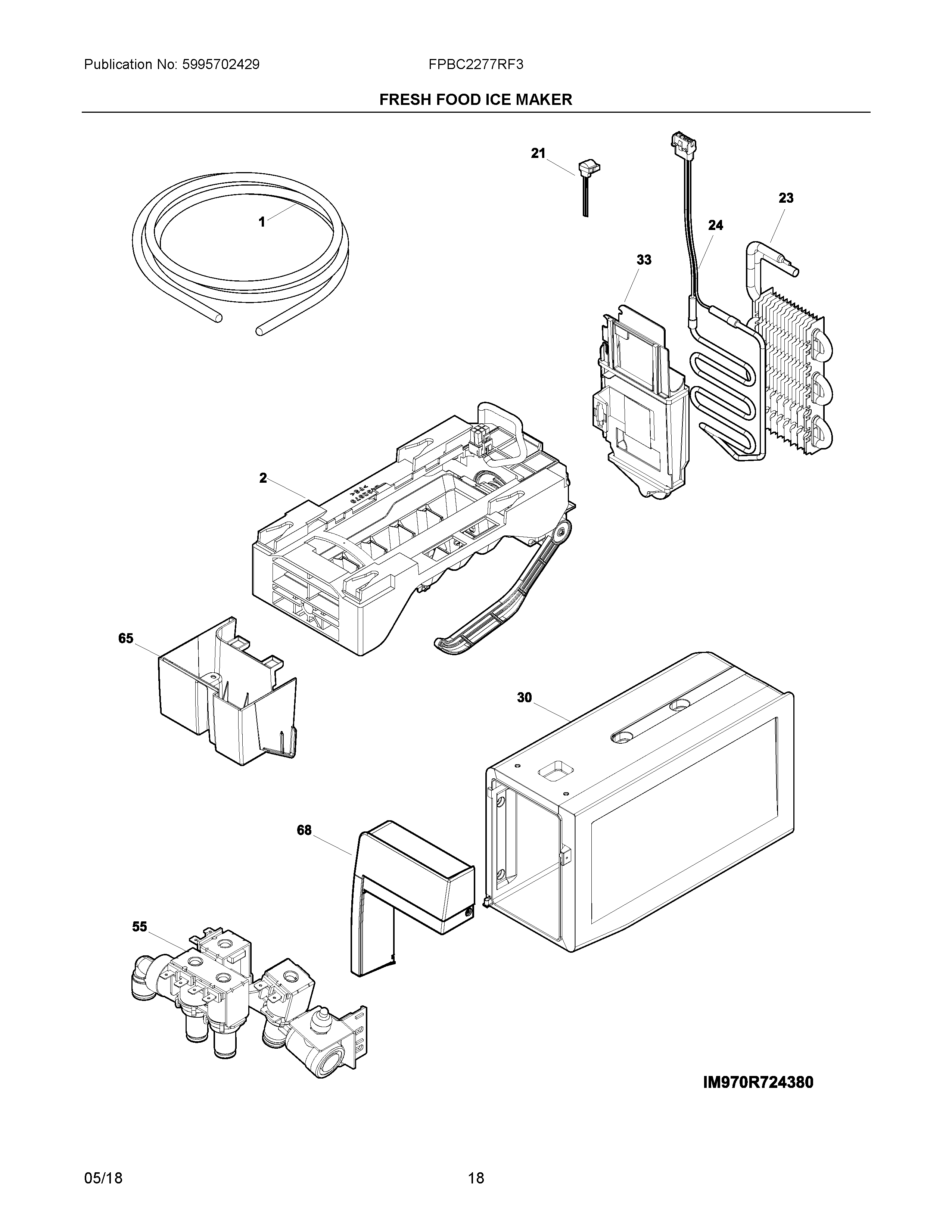

FPBC2277RF3 09 – FRESH FOOD ICE MAKER

FPBC2277RF3 09 – FRESH FOOD ICE MAKER

Written by

in

FPBC2277RF3 09 – FRESH FOOD ICE MAKER

Products

PositionProduct
NI240396801 Frigidaire Refrigerator Tube Clamp
NIA242096001 Frigidaire Refrigerator Insulation
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NID241965906 Frigidaire Refrigerator Water Tube
NIC241964707 Frigidaire Refrigerator Water Tube
NIB241920106 Frigidaire Fill Tube Kit
NIA241844403 Frigidaire Refrigerator Tube
NIE242200102 Frigidaire Refrigerator Clip
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIF242220119 Frigidaire Refrigerator Water Tube
NIG242220204 Frigidaire Water Inlet Tube
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA5303918784 Frigidaire Refrigerator Air Handler Housing
1218976435 Frigidaire Refrigerator Water Inlet Tube
2243297613 Frigidaire Refrigerator Ice Maker
215303918810 Frigidaire Refrigerator French Door Defrost Thermostat
23242094603 Frigidaire Refrigerator Evaporator
24242094802 Frigidaire Defrost Heater
30242100402 Frigidaire Refrigerator Housing Assembly
33HOUSING-EVAPORATOR
55QUAD WATER VALVE
65808462601 Frigidaire Refrigerator Cover
68242095002 Frigidaire Refrigerator Cover
