FPBC2277RF5 10 – FREEZER ICE MAKER

FPBC2277RF5 10 – FREEZER ICE MAKER

Written by

in

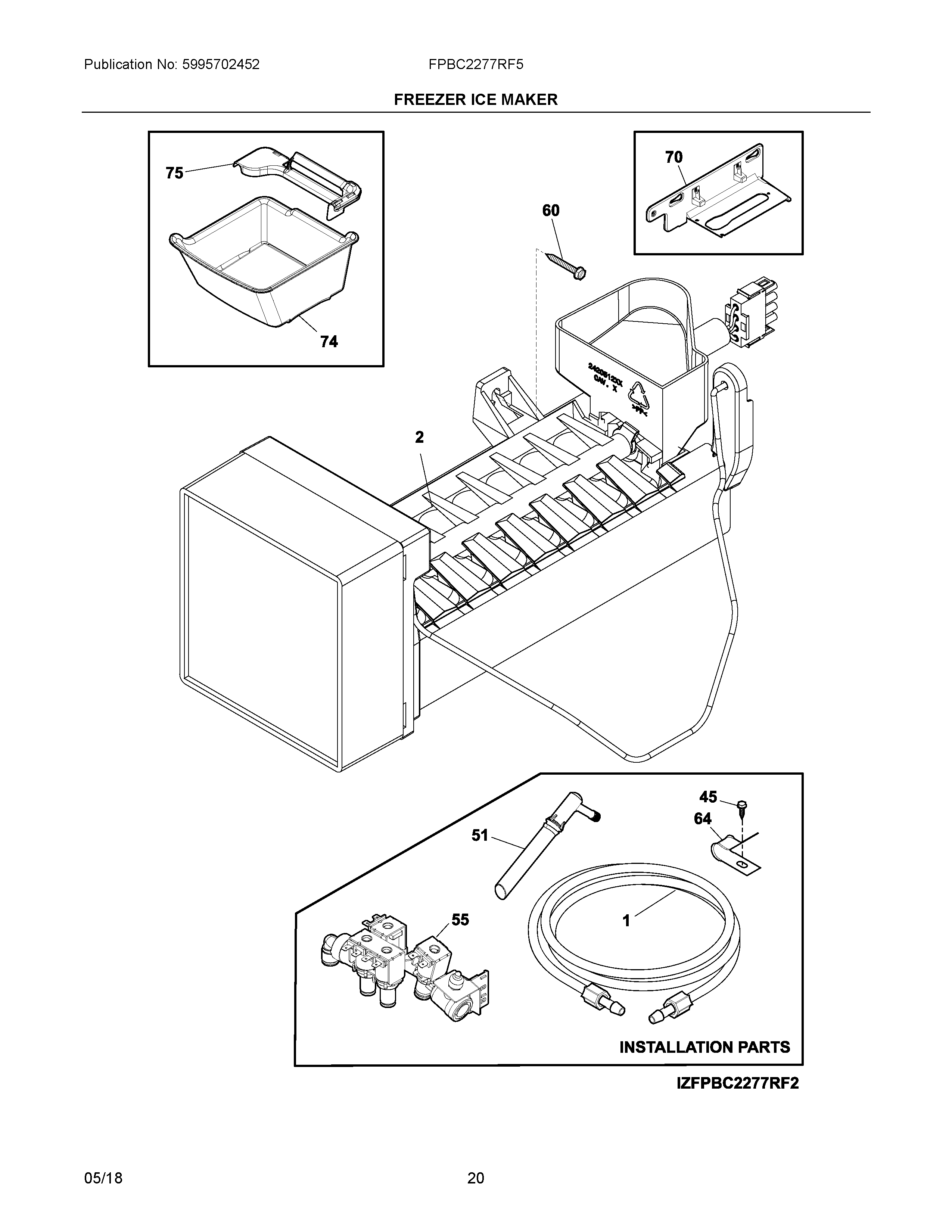

FPBC2277RF5 10 – FREEZER ICE MAKER

Products

PositionProduct
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIC241964707 Frigidaire Refrigerator Water Tube
NIB241920106 Frigidaire Fill Tube Kit
NIA241844403 Frigidaire Refrigerator Tube
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
1218976435 Frigidaire Refrigerator Water Inlet Tube
25303918493 Frigidaire Refrigerator Ice Maker Assembly
42218515401 Frigidaire Refrigerator Clip
455304455650 Frigidaire Refrigerator Screw
51242159302 Frigidaire Refrigerator Water Fill Tube
55QUAD WATER VALVE
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
745304504660 Frigidaire Refrigerator Ice Container
75242240101 Frigidaire Refrigerator Shield
