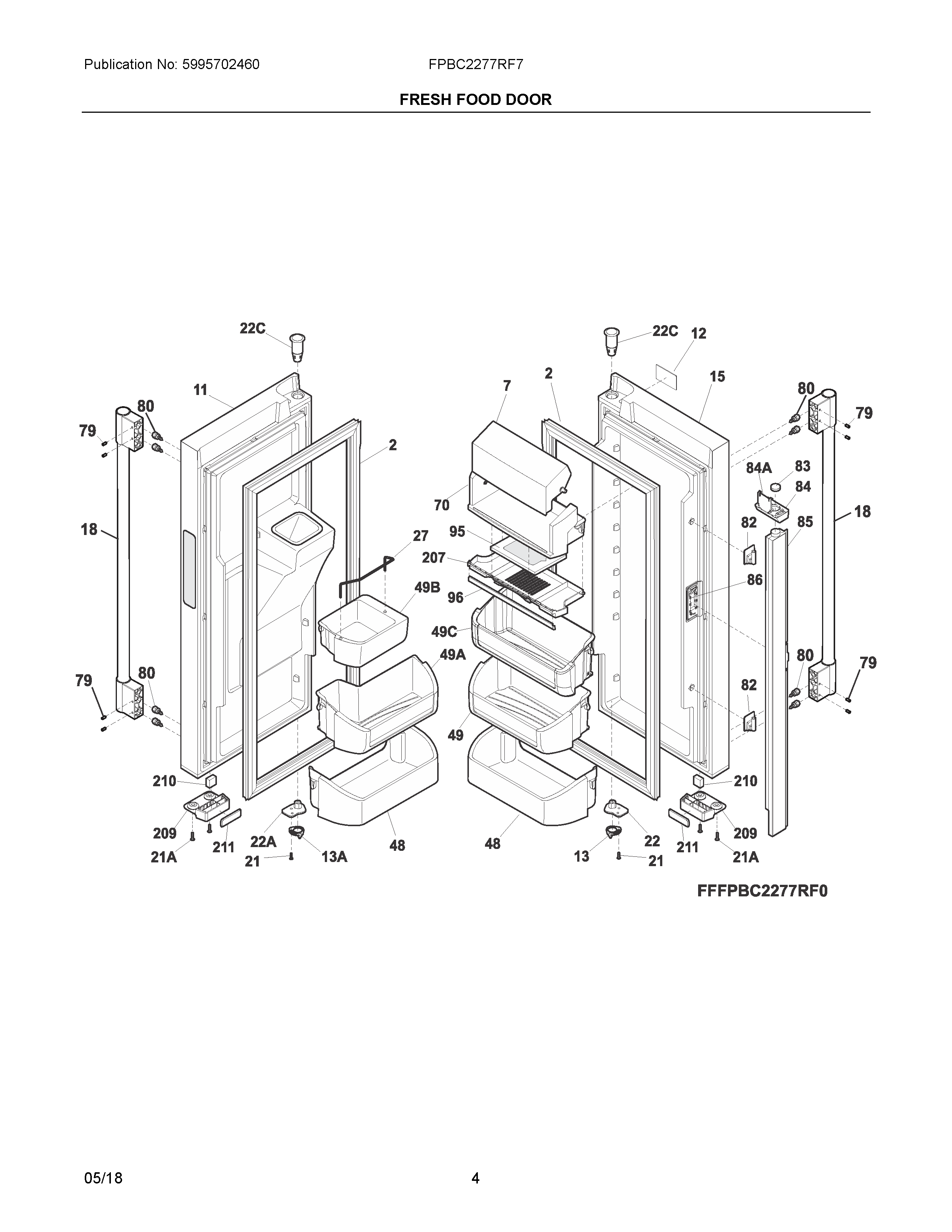

FPBC2277RF7 03 – FRESH FOOD DOOR

FPBC2277RF7 03 – FRESH FOOD DOOR

Written by

in

FPBC2277RF7 03 – FRESH FOOD DOOR

Products

Position	Product
NIA	5304517889 Frigidaire Refrigerator Liner
NIAA	242012002 Frigidaire Refrigerator Door Liner Bin
NICA	242080102 Frigidaire Refrigerator Door Liner BIN
NIA	242068601 Frigidaire Refrigerator Bumper
NI	242040806 Frigidaire Refrigerator Wiring Harness
NI	5304501175 Frigidaire Harness
NI	FRESHNESS BOOSTER, KIT, PUREAIR
NI	241806601 Frigidaire Refrigerator Water Connector
NIB	240451503 Frigidaire Refrigerator Screw
NIA	5304467131 Frigidaire Refrigerator Wrench
NIC	5304520993 Frigidaire Refrigerator Harness-Mullion
NI	242015001 Frigidaire Refrigerator Screw
2	GASKET-DR
11	DOOR-REFR, STAINLESS, LH
12	809108704 Frigidaire Refrigerator Badge
13A	241868402 Frigidaire Refrigerator Door Stop
13	241868401 Frigidaire Refrigerator Door Stop
15	DOOR-REFR, STAINLESS, RH
18	5304536767 Frigidaire Handle Asmy
21	242017501 Frigidaire Refrigerator Screw
21A	5304453707 Frigidaire Oven Screw
22C	241760401 Frigidaire Refrigerator Bearing
22	CAM, UPPER HINGE, RH
22A	242075602 Frigidaire Refrigerator Cam
27	241752702 Frigidaire Refrigerator Retainer
48	242071401 Frigidaire Refrigerator Door Shelf Bin White
49	242037205 Frigidaire Refrigerator Door Bin
49B	242080201 Frigidaire Refrigerator Door Bin
49A	242037202 Frigidaire Refrigerator Door Bin
49C	242079801 Frigidaire Refrigerator Bin
70	241895805 Frigidaire Refrigerator Butter-Cheese Door
79	218755402 Frigidaire Refrigerator Set Screw
80	218755504 Frigidaire Refrigerator Shoulder Screw
82	241779401 Frigidaire Refrigerator Flipper Hinge Mullion
83	241812202 Frigidaire Refrigerator Magnet
84	808274201 Frigidaire Door Guide Assembly
84A	242190501 Frigidaire Refrigerator Mullion Assembly
85	241778811 Frigidaire Refrigerator Flipper Mullion Assembly
86	241779802 Frigidaire Door Hinge Mullion Flipper
95	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
96	242048001 Frigidaire Refrigerator Trim
207	242047901 Frigidaire Refrigerator Air Filter Housing
209	242291001 Frigidaire Refrigerator Housing
210	241779101 Frigidaire Refrigerator Magnet
211	241979601 Frigidaire Refrigerator Bumper
