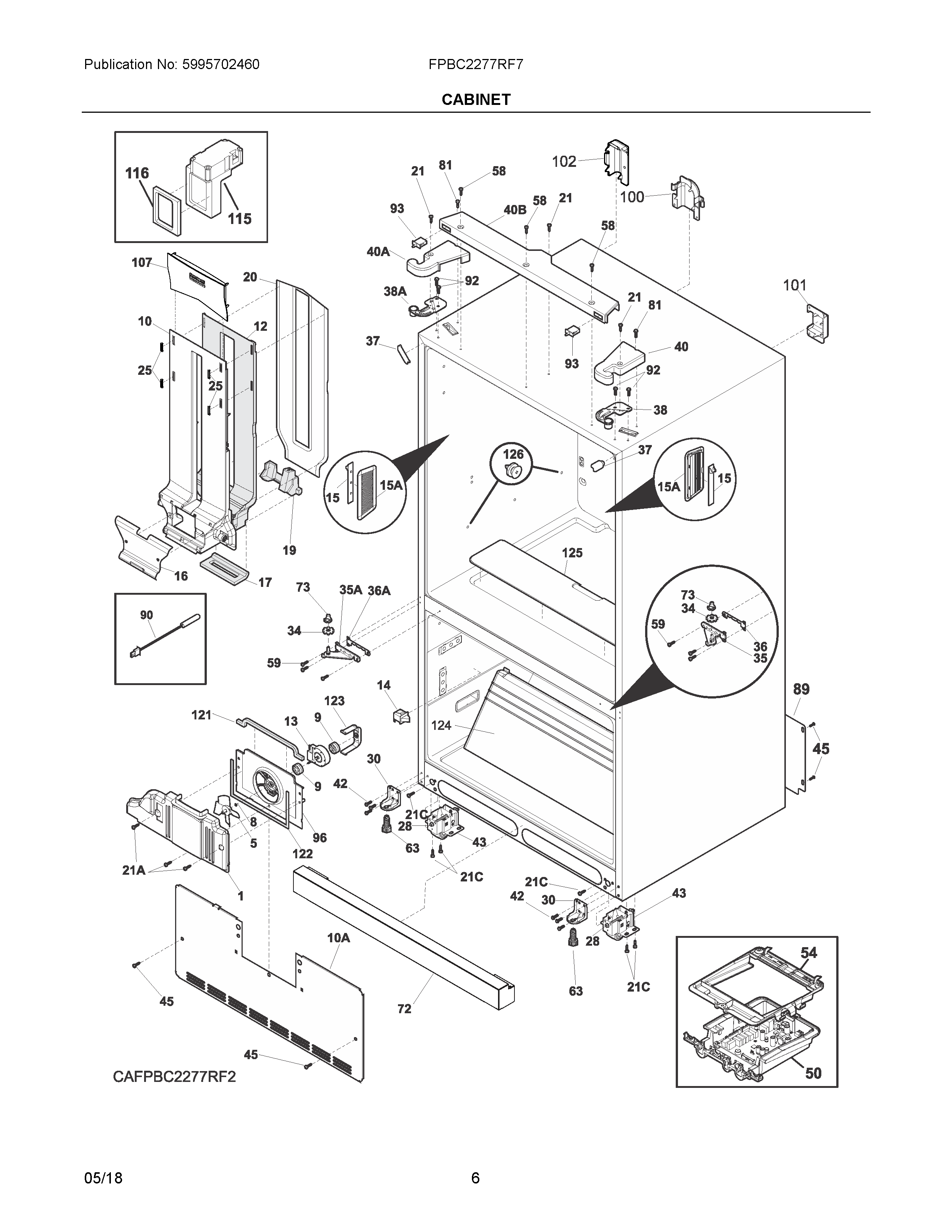

FPBC2277RF7 04 – CABINET

Products

Position	Product
NI	218362501 Frigidaire Refrigerator Screw
NIB	WCI 241953904
NIAA	241860104 Frigidaire Refrigerator Coil Cover Gasket
NIAB	241860105 Frigidaire Refrigerator Gasket-Coil Cover
NIC	241969001 Frigidaire Refrigerator Cap
NIB	241860112 Frigidaire Refrigerator Evaporator Gasket
NI	5304453707 Frigidaire Oven Screw
NIA	240383407 Frigidaire Refrigerator Screw
NIA	807999001 Frigidaire Refrigerator Harness
NIBA	218515401 Frigidaire Refrigerator Clip
NIA	242004802 Frigidaire Refrigerator Foam Strip
NI	241695904 Frigidaire Refrigerator Screw
NI	5304455650 Frigidaire Refrigerator Screw
NIB	241953902 Frigidaire Refrigerator Screw
NIA	241842301 Frigidaire Refrigerator Thermistor Cap
NIA	241860111 Frigidaire Refrigerator Evaporator Gasket
NIA	5304521649 Frigidaire Refrigerator Wiring Harness
NIC	242072501 Frigidaire Refrigerator Insulation
1	5304503130 Frigidaire Refrigerator Cover
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
10	COVER-AIR DUCT, SILVER
10A	241860402 Frigidaire Refrigerator Evaporator Coil Cover
12	INSULATION-AIR DUCT
13	MOTOR,EVAPORATOR FAN
14	242060202 Frigidaire Refrigerator Switch-Light/Lamp
15	242196204 Frigidaire Refrigerator Light Board
15A	242202701 Frigidaire Refrigerator Lens
16	242072101 Frigidaire Refrigerator Cover
17	241928201 Frigidaire Refrigerator Air Duct Gasket
19	242072601 Frigidaire Refrigerator Support
20	242072201 Frigidaire Refrigerator Cover
21A	242015001 Frigidaire Refrigerator Screw
21C	218252201 Frigidaire Refrigerator Screw
21	241732101 Frigidaire Refrigerator Screw
25	CLIP, AIR VENT, GREY
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35	241767211 Frigidaire Refrigerator Lower Hinge
35A	241767212 Frigidaire Refrigerator Lower Hinge
36	241868201 Frigidaire Refrigerator Spacer
36A	241868202 Frigidaire Refrigerator Spacer
37	242161206 Frigidaire Refrigerator Cabinet Corner Trim
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40	5304504483 Frigidaire Refrigerator Right Hand Upper Gray Hinge Cover
40A	5304504482 Frigidaire Refrigerator Left Hand Upper Hinge Cover Gray
40B	241862405 Frigidaire Refrigerator Upper Hinge Cover
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50	5304502625 Frigidaire Refrigerator Assembly Board
54	807854301 Frigidaire Refrigerator Support
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	5304501186 Frigidaire Refrigerator Toe Grille Assembly
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
93	241835505 Frigidaire Refrigerator Light Switch
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
100	242157601 Frigidaire Refrigerator Cover
101	242157801 Frigidaire Refrigerator Cover
102	242157501 Frigidaire Refrigerator Cover
107	5303918728 Frigidaire Duct ASSEMBLY
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
124	242006903 Frigidaire Refrigerator Air Duct
125	242071201 Frigidaire Refrigerator Cover
126	5304515677 Frigidaire Package of 4 Screws
