FPBC2277RF7 09 – FRESH FOOD ICE MAKER

FPBC2277RF7 09 – FRESH FOOD ICE MAKER

Written by

in

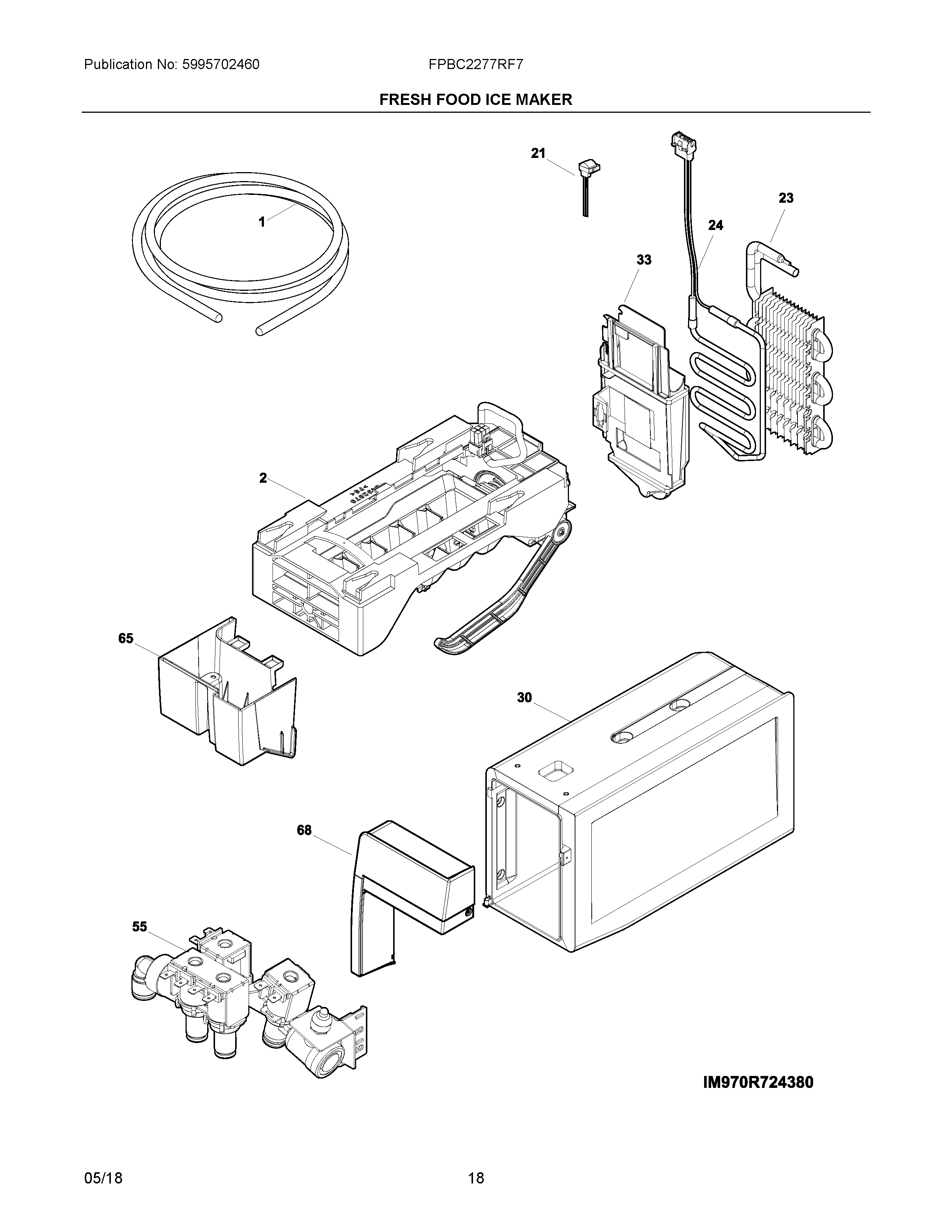

FPBC2277RF7 09 – FRESH FOOD ICE MAKER

Products

PositionProduct
NI240396801 Frigidaire Refrigerator Tube Clamp
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA242220204 Frigidaire Water Inlet Tube
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NIA5304485759 Frigidaire Refrigerator Tape
NIB5303918784 Frigidaire Refrigerator Air Handler Housing
1218976435 Frigidaire Refrigerator Water Inlet Tube
2243297613 Frigidaire Refrigerator Ice Maker
215303918810 Frigidaire Refrigerator French Door Defrost Thermostat
23242094603 Frigidaire Refrigerator Evaporator
30242100402 Frigidaire Refrigerator Housing Assembly
33HOUSING-EVAPORATOR
55QUAD WATER VALVE
65808462601 Frigidaire Refrigerator Cover
68242095002 Frigidaire Refrigerator Cover
