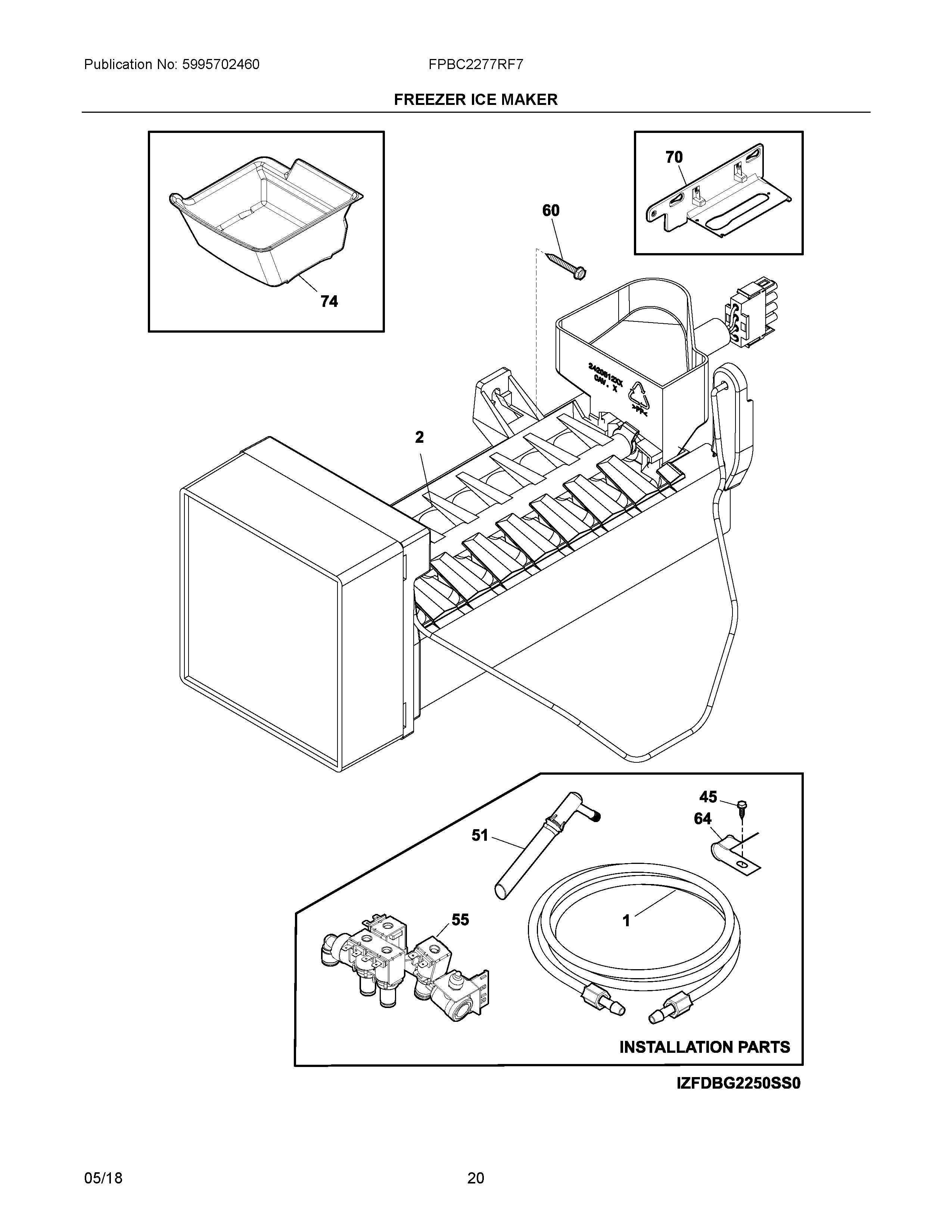

FPBC2277RF7 10 – FREEZER ICE MAKER

Products

Position	Product
NI	240396801 Frigidaire Refrigerator Tube Clamp
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA	242220204 Frigidaire Water Inlet Tube
1	218976435 Frigidaire Refrigerator Water Inlet Tube
2	241798233 Frigidaire Refrigerator Ice Maker
42	218515401 Frigidaire Refrigerator Clip
45	5304455650 Frigidaire Refrigerator Screw
51	242159302 Frigidaire Refrigerator Water Fill Tube
55	QUAD WATER VALVE
60	5304455852 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
75	5304504660 Frigidaire Refrigerator Ice Container
