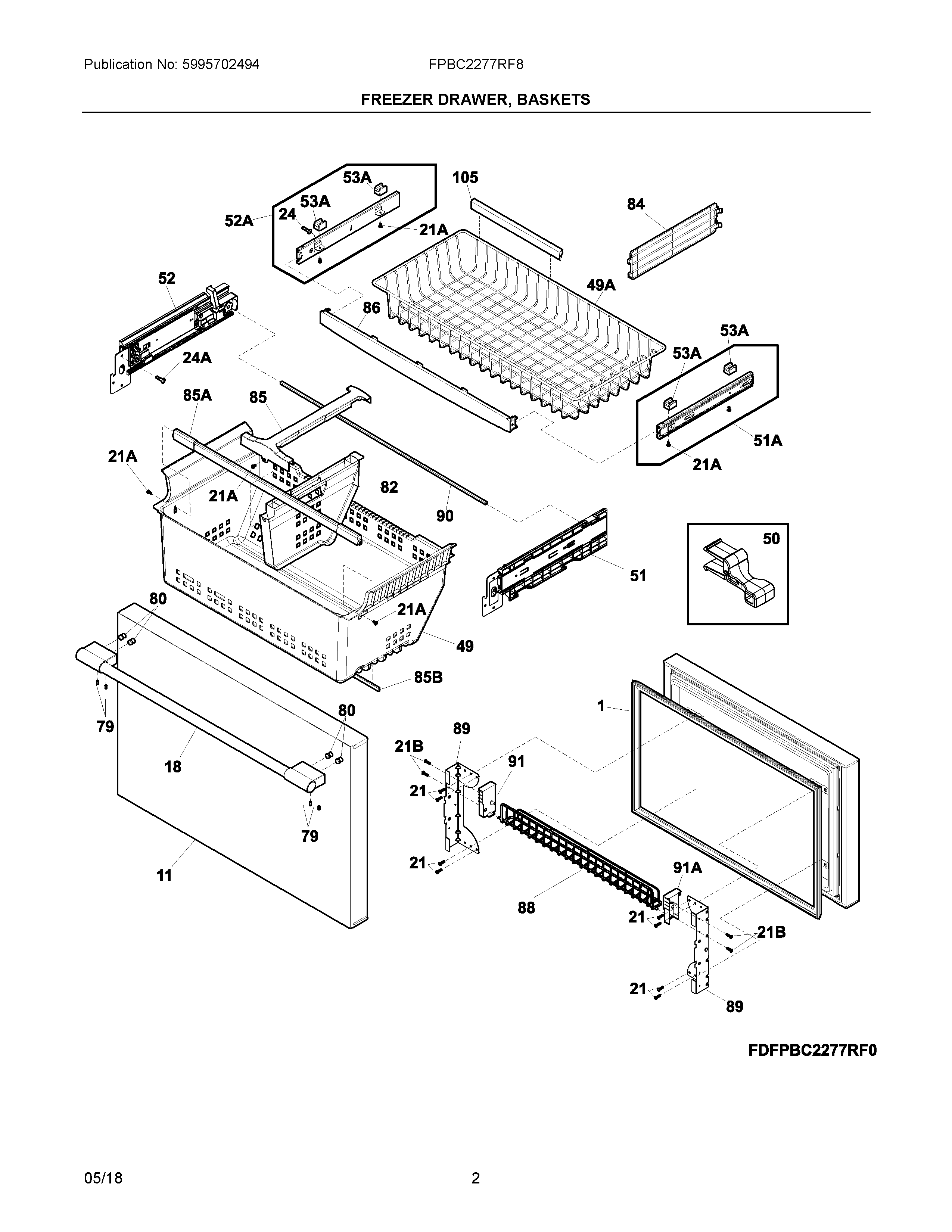

FPBC2277RF8 02 – FREEZER DRAWER, BASKETS

FPBC2277RF8 02 – FREEZER DRAWER, BASKETS

Written by

in

FPBC2277RF8 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA242039702 Frigidaire Refrigerator Screw
NIAA242039701 Frigidaire Refrigerator Screw
NIA5304467131 Frigidaire Refrigerator Wrench
NIA242139201 Frigidaire Compression Spring
NIA242011101 Frigidaire Refrigerator Pin-Lock
NIA241953908 Frigidaire Refrigerator Screw
NI5304453707 Frigidaire Oven Screw
NI242146401 Frigidaire Refrigerator Screw
1GASKET
11DRAWER, STAINLESS, FREEZER
185304536767 Frigidaire Handle Asmy
21241690602 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
21B242015001 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
24A240383412 Frigidaire Refrigerator Screw
49ABASKET-FRZR, UPPER
495304526200 Frigidaire Refrigerator Basket
505304501271 Frigidaire Shelf Clip
51A5304508094 Frigidaire Refrigerator Assembly Slide
515303918725 Frigidaire Refrigerator Slide Assembly
52A5304508095 Frigidaire Refrigerator Slide Assembly
525303918724 Frigidaire Refrigerator Slide Assembly
53A5303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
825304507996 Frigidaire Refrigerator Divider
84241780907 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
85242139401 Frigidaire Refrigerator Divider
85B241872203 Frigidaire Refrigerator Beam Support
865304507340 Frigidaire Refrigerator Trim
88241824008 Frigidaire Refrigerator Tilt-Out Rack
895304509676 Frigidaire Refrigerator Bracket
90242136901 Frigidaire Refrigerator Timing Bar
91241824102 Frigidaire Refrigerator Door Rack Cap
91A241824101 Frigidaire Refrigerator Cap
105242116801 Frigidaire Refrigerator Trim-Basket
