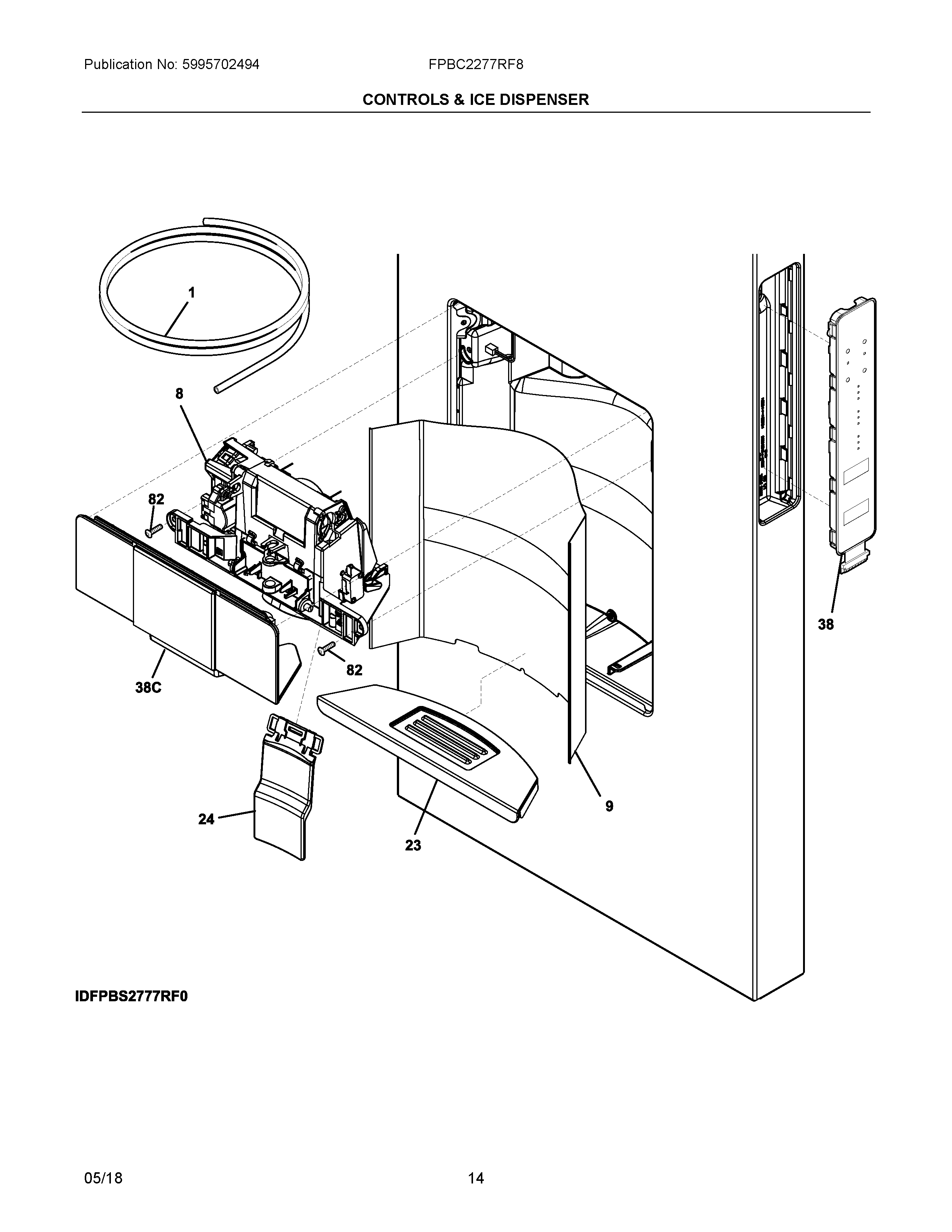

FPBC2277RF8 07 – CONTROLS & ICE DISPENSER

FPBC2277RF8 07 – CONTROLS & ICE DISPENSER

Written by

in

FPBC2277RF8 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI5304501175 Frigidaire Harness
NI242040806 Frigidaire Refrigerator Wiring Harness
NI5303918744 Frigidaire Refrigerator Kit
NIA218976435 Frigidaire Refrigerator Water Inlet Tube
NID241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIE5303918602 Frigidaire Refrigerator Water Tube Kit
NIC241964707 Frigidaire Refrigerator Water Tube
NIB241920106 Frigidaire Fill Tube Kit
NI241806601 Frigidaire Refrigerator Water Connector
NIF242220119 Frigidaire Refrigerator Water Tube
NIG242220204 Frigidaire Water Inlet Tube
NI241510904 Frigidaire Refrigerator Dispenser Harness
85303918773 Frigidaire Refrigerator Dispenser and Paddle
9809089801 Frigidaire Refrigerator Liner
235304501179 Frigidaire Sump Assembly
245304501181 Frigidaire Refrigerator Actuator
38C809091203 Frigidaire Refrigerator Control Assembly
38242048229 Frigidaire Refrigerator Black User Interface Assembly
82241953902 Frigidaire Refrigerator Screw
