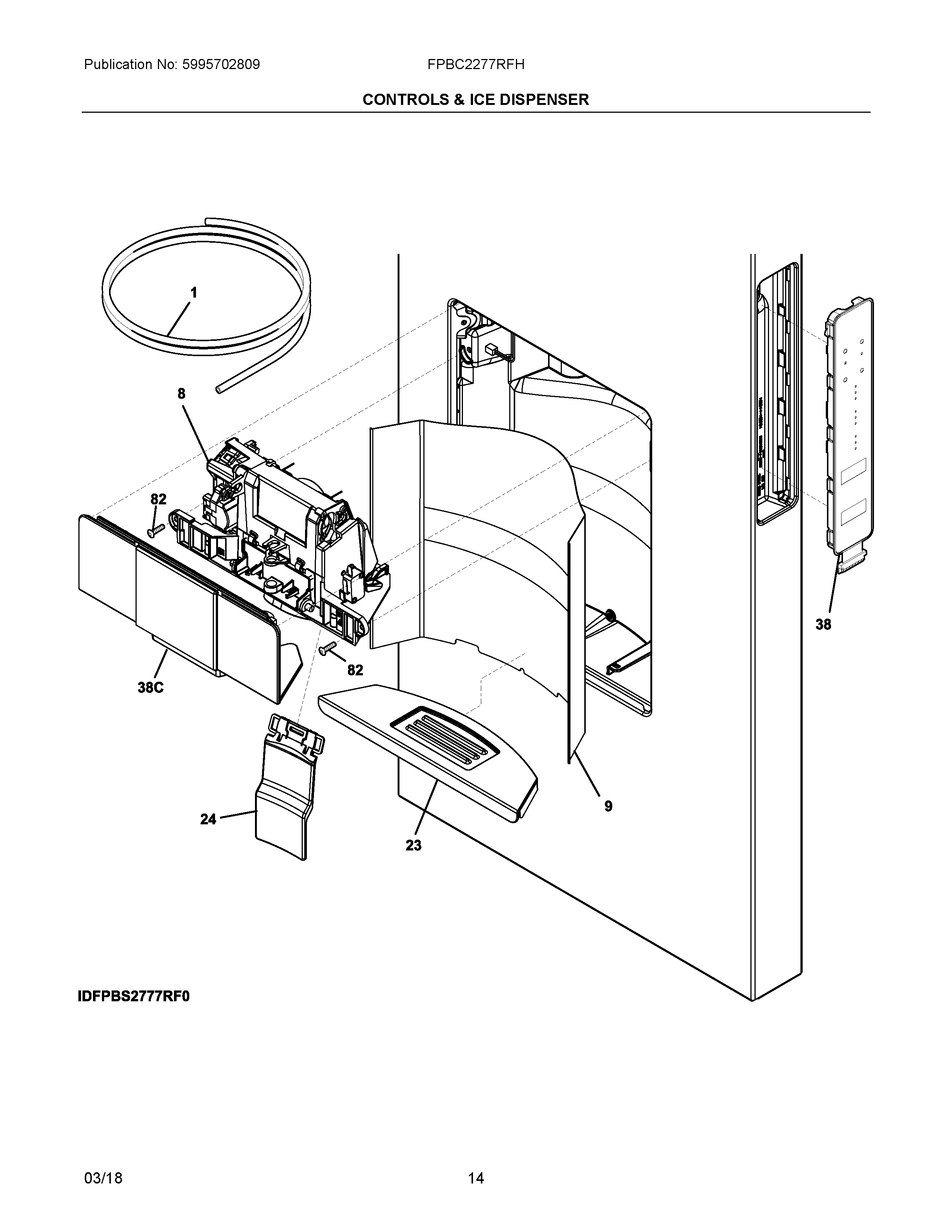

FPBC2277RFH 07 – CONTROLS & ICE DISPENSER

Products

Position	Product
NI	242040806 Frigidaire Refrigerator Wiring Harness
NI	5304501175 Frigidaire Harness
NI	5303918744 Frigidaire Refrigerator Kit
NIA	218976435 Frigidaire Refrigerator Water Inlet Tube
NIC	242200102 Frigidaire Refrigerator Clip
NIB	241806601 Frigidaire Refrigerator Water Connector
NI	241510904 Frigidaire Refrigerator Dispenser Harness
1	241965906 Frigidaire Refrigerator Water Tube
8	5303918773 Frigidaire Refrigerator Dispenser and Paddle
9	809089801 Frigidaire Refrigerator Liner
23	5304501179 Frigidaire Sump Assembly
24	5304501181 Frigidaire Refrigerator Actuator
38C	809091203 Frigidaire Refrigerator Control Assembly
38	5304510329 Frigidaire Refrigerator Assembly, Interface, Black
82	241953902 Frigidaire Refrigerator Screw
