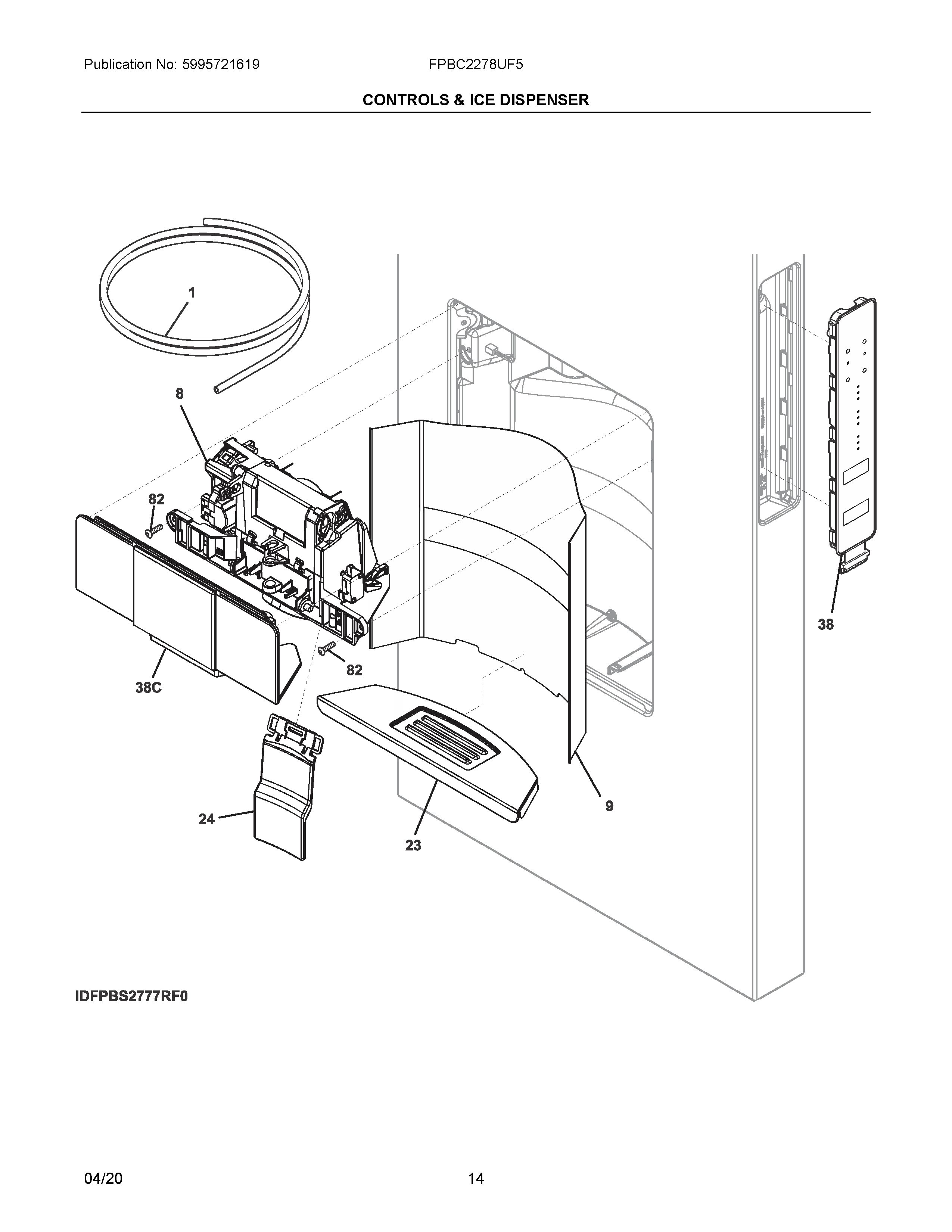

FPBC2278UF5 07 – CONTROLS & ICE DISPENSER

FPBC2278UF5 07 – CONTROLS & ICE DISPENSER

Written by

in

FPBC2278UF5 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NI242040806 Frigidaire Refrigerator Wiring Harness
NI5304501175 Frigidaire Harness
NI5303918744 Frigidaire Refrigerator Kit
NIA218976436 Frigidaire Refrigerator Water Inlet Tube
NIC242200102 Frigidaire Refrigerator Clip
NIB241806601 Frigidaire Refrigerator Water Connector
NI241510904 Frigidaire Refrigerator Dispenser Harness
1241965910 Frigidaire Refrigerator Water Tube
8242270219 Frigidaire Refrigerator Purifier and Water Module Assembly
9809089801 Frigidaire Refrigerator Liner
235304501179 Frigidaire Sump Assembly
245304501181 Frigidaire Refrigerator Actuator
38C809091203 Frigidaire Refrigerator Control Assembly
385304510329 Frigidaire Refrigerator Assembly, Interface, Black
82241953902 Frigidaire Refrigerator Screw
