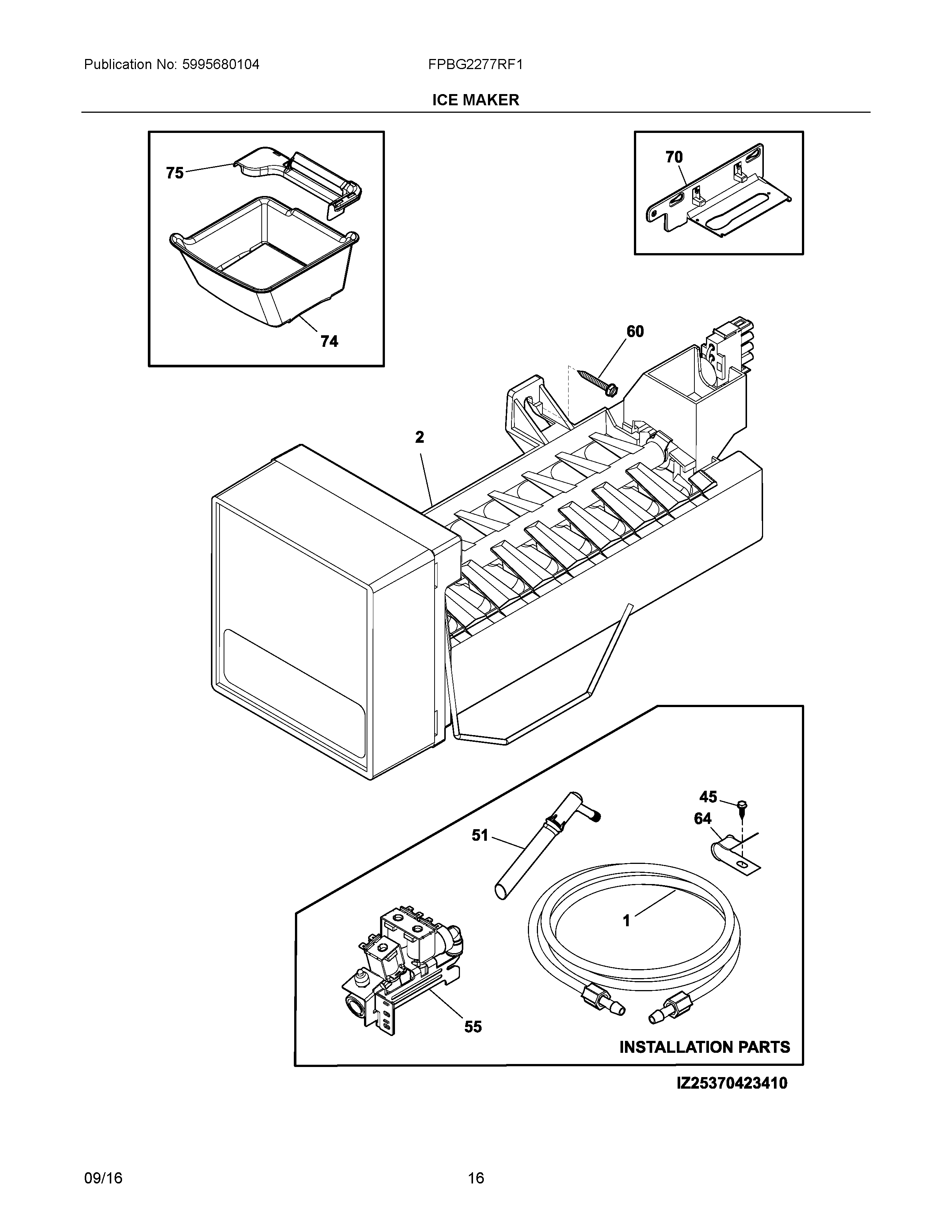

FPBG2277RF1 08 – ICE MAKER

Products

Position	Product
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	242039701 Frigidaire Refrigerator Screw
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
1	WCI 218976804
2	241798233 Frigidaire Refrigerator Ice Maker
45	5304455650 Frigidaire Refrigerator Screw
51	5303918603 Frigidaire Refrigerator Water Tube Kit
55	242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
64	5304455846 Frigidaire Refrigerator Clamp
70	242041701 Frigidaire Refrigerator Ice Maker Bracket
74	242127901 Frigidaire Refrigerator Ice Container
75	242240101 Frigidaire Refrigerator Shield
